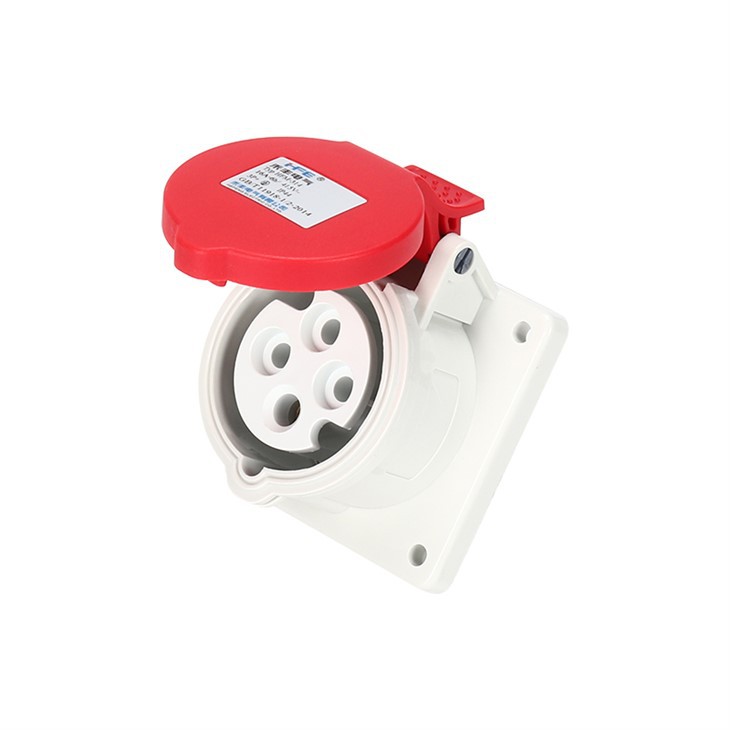

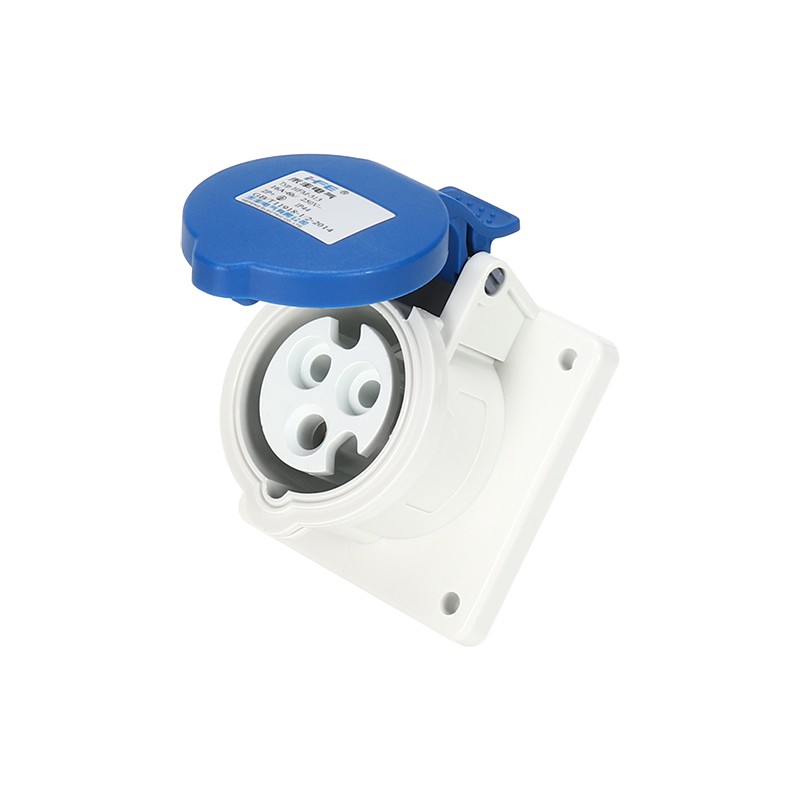

Concealed Socket Round
Focused on delivering long-term reliable performance, concealed socket round is crafted with a tough, reinforced enclosure that is engineered to resist the extreme conditions of industrial environments. It maintains stable electrical connection even with prolonged exposure to dust, moisture and industrial chemical pollutants.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of concealed socket round in China. With abundant experience, we warmly welcome you to buy high-grade concealed socket round for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Focused on delivering long-term reliable performance, concealed socket round is crafted with a tough, reinforced enclosure that is engineered to resist the extreme conditions of industrial environments. It maintains stable electrical connection even with prolonged exposure to dust, moisture and industrial chemical pollutants.
With an IP67 protection rating, it provides full defense against dust intrusion and tolerates short-term submersion in water, making it a dependable choice for both demanding indoor manufacturing sites and exposed outdoor installations. Every contact pin of concealed socket round is assigned a clear specific electrical function, which ensures precise phase alignment and secure grounding, delivering consistent, safe power supply.
This concealed socket round is optimized for extended service life, effectively cutting down the need for frequent maintenance or replacement, and helps users reduce overall equipment downtime and maintenance expenditure.
Technical Parameter
|
Product name |
panle mount socket |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HFM-313/HFM-313-4 |
|
4 pin (3P+E) |
HFM-314/HFM-314-4 |
||
|
5 pin (3P+N+E) |
HFM-315/HFM-315-4 |
||
|
32A |
3 pin (2P+E) |
HFM-323/HFM-323-4 |
|
|
4 pin (3P+E) |
HFM-324/HFM-324-4 |
||
|
5 pin (3P+N+E) |
HFM-325/HFM-325-4 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||
Dimensions
|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
76.5 |
76.5 |
76.5 |
76.5 |
76.5 |
76.5 |
|
b |
76.5 |
76.5 |
76.5 |
76.5 |
76.5 |
76.5 |
|
c |
61 |
61 |
61 |
61 |
61 |
61 |
|
d |
61 |
61 |
61 |
61 |
61 |
61 |
|
e |
61 |
88 |
89 |
106 |
106 |
107 |
|
Cable cross-section area(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
