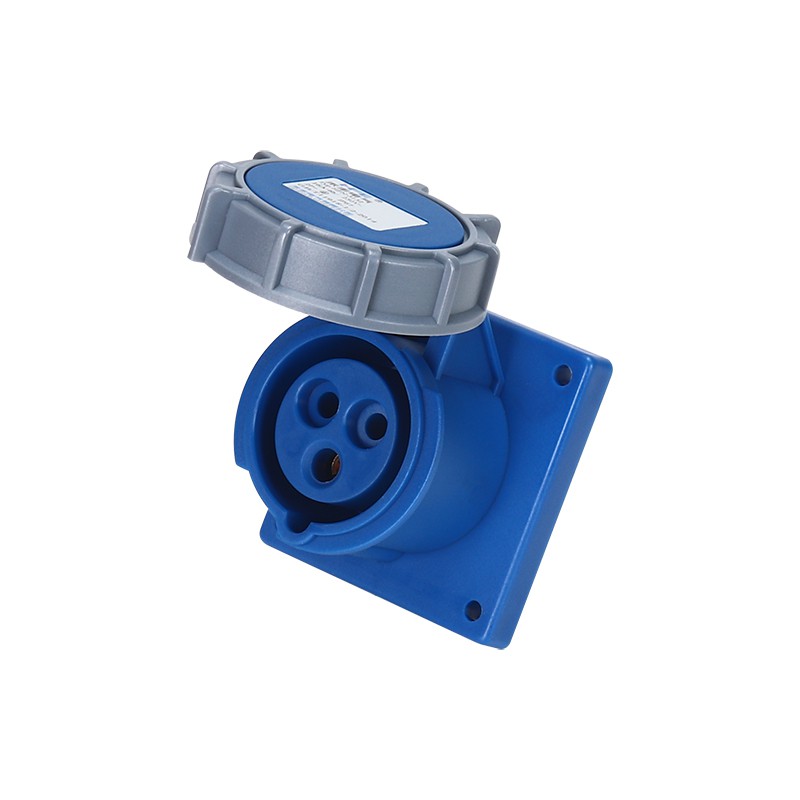

Concealed Industrial Socket
16A and 32A concealed industrial pulg and sockets are typically crafted from durable thermoplastic materials or high-strength polyamide (Nylon). These materials provide excellent resistance to mechanical stress, thermal conditions, and chemical exposure, ensuring longevity and reliability.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of concealed industrial socket in China. With abundant experience, we warmly welcome you to buy high-grade concealed industrial socket for sale here from our factory. All OEM products are with high quality and low price.
Product Details
16A and 32A concealed industrial pulg and sockets are typically crafted from durable thermoplastic materials or high-strength polyamide (Nylon). These materials provide excellent resistance to mechanical stress, thermal conditions, and chemical exposure, ensuring longevity and reliability. This concealed industrial socket them suitable for powering large machinery, industrial equipment, and high-demand applications where stable and efficient power supply is crucial.
Structure
Screw terminal block
With high temperature contact carrier
Integrated housing structure
With cable gland and seal
With strain relief to prevent cable breakage
Technical Parameter
|
Product name |
panle mount socket |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HFN-3132/HFN-3132-4 |
|
4 pin (3P+E) |
HFN-3142/HFN-3142-4 |
||
|
5 pin (3P+N+E) |
HFN-3152/HFN-3152-4 |
||
|
32A |
3 pin (2P+E) |
HFN-3232/HFN-3232-4 |
|
|
4 pin (3P+E) |
HFN-3242/HFN-3242-4 |
||
|
5 pin (3P+N+E) |
HFN-3252/HFN-3252-4 |
||
|
Protection degree |
IP67 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||

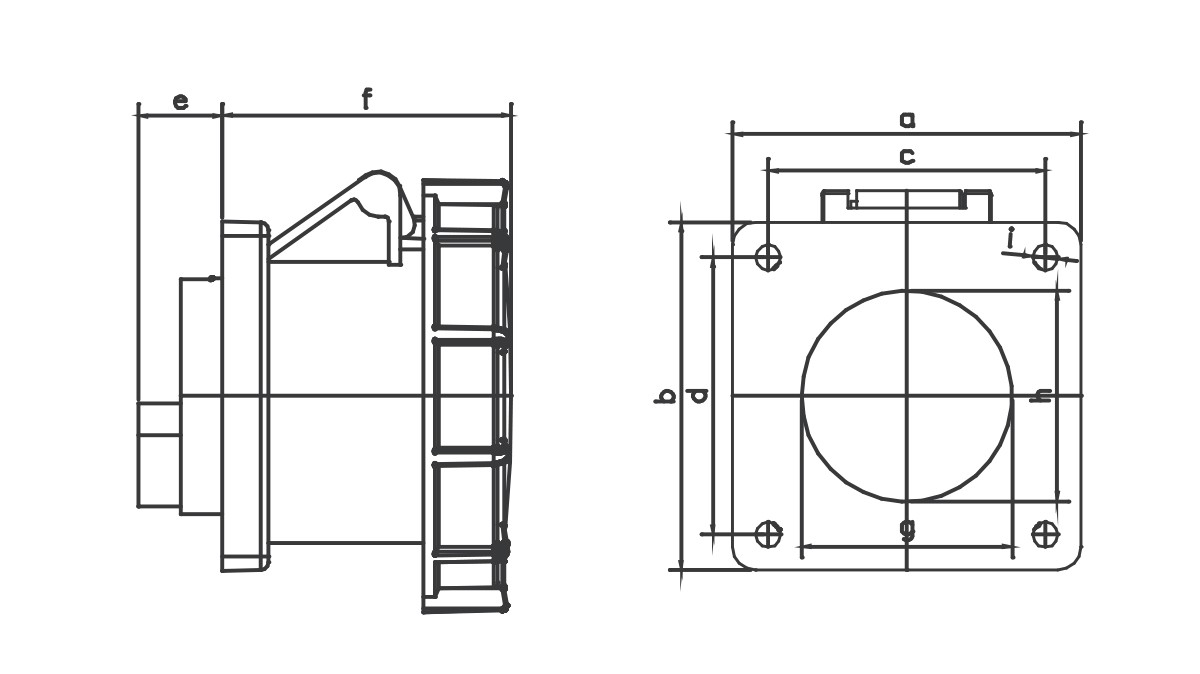

Dimensions
|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
75 |
75 |
75 |
75 |
75 |
75 |
|
b |
75 |
75 |
75 |
75 |
75 |
75 |
|
C |
61 |
61 |
61 |
61 |
61 |
61 |
|
d |
61 |
61 |
61 |
61 |
61 |
61 |
|
e |
18 |
18 |
18 |
22 |
22 |
22 |
|
F |
63 |
63 |
63 |
75 |
75 |
76 |
|
g |
40 |
44 |
52 |
49 |
49 |
56 |
|
h |
40 |
44 |
52 |
49 |
49 |
56 |
|
i |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
Cable cross-section area(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
