High Current Plug Socket

Product Overview



High current plug sockets from hfcee.com are engineered for power transmission in demanding industrial environments. Built with solid copper alloy contacts and flame-retardant engineering thermoplastics, these connectors maintain low contact resistance and stable thermal performance under continuous electrical loads ranging from 50A to 500A. Designed for panel-mount and inline cable installations, they provide secure mechanical locking and environmental sealing to prevent power interruption caused by vibration, dust, or moisture.



Key Features

Positive Locking Mechanism

Bayonet or threaded coupling rings with mechanical detents prevent accidental disconnection under severe operational vibration.

Modular Termination Options

Supports crimp, screw, and busbar termination methods to match existing internal wiring harnesses and installation protocols.

Environmental Sealing

Integrated elastomer gaskets deliver up to IP67/IP68 ingress protection when mated, protecting internal connections from fluid immersion and particulate ingress.

High Thermal Endurance

Housing materials rated for continuous operation from -40 degrees Celsius to +125 degrees Celsius, meeting UL94 V-0 flame retardancy standards.



Technical Specifications & Derating Guidance



Parameter

Specification Range

Test Standard / Condition

Rated Current (In)

50A – 500A

Ambient temperature 40 degrees Celsius

Rated Voltage (Ue)

Up to 1000V AC/DC

IEC 60664-1

Contact Resistance

Less than or equal to 0.5 milliohms

Initial state at 20A

Dielectric Withstand Voltage

3000V AC / 1 min

Between adjacent contacts

Insulation Resistance

Greater than or equal to 5000 Megaohms

At 1000V DC

IP Rating (Mated)

IP67 / IP68

IEC 60529

Mechanical Life

Greater than or equal to 500 mating cycles

Insertion/withdrawal force test

Housing Material

PA66 / PBT / Aluminum Alloy

UL94 V-0 / Corrosion resistant

Contact Material

Copper alloy, silver-plated

Spectrometric purity test (greater than or equal to 98 percent IACS)

Operating Temperature

-40 degrees Celsius to +125 degrees Celsius

IEC 60068-1

Product Types


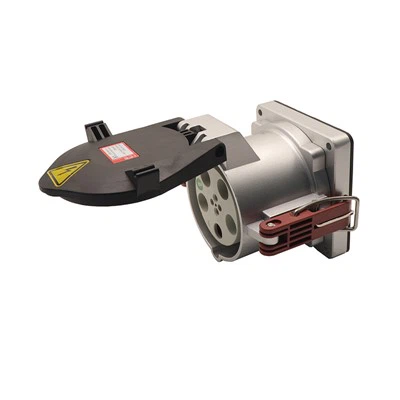

Heavy-Duty Industrial Panel Plugs

Flanged housing fixed directly onto control cabinets or switchgear enclosures; supports direct internal busbar or heavy-gauge cable attachment.

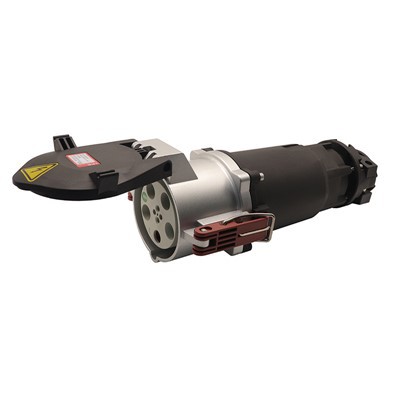

In-Line Cable Sockets



Free-hanging receptacle designed for extension cable assemblies; incorporates multi-jaw cable glands for mechanical strain relief.

High-Density Hybrid Connectors



Combines high-current power contacts (up to 200A) with signal/data pins in a single housing to minimize panel cutout space.

Waterproof Quick-Disconnect Series

Features push-pull or rapid-lock mechanisms for applications requiring frequent connection and maintenance cycles.





Applications

Industrial Automation & Robotics: Main power feeds for automated guided vehicles (AGVs), robotic welding controllers, and heavy industrial drives.


Energy Storage Systems (BESS): Rack-to-rack DC power distribution and battery module interconnects operating at 48V to 1000V.


Renewable Energy Infrastructure: Inverter-to-grid connections in commercial solar installations and nacelle power routing in wind turbines.


Commercial & Off-Highway Vehicles: High-power auxiliary interfaces for electric buses, mining trucks, and port material handling equipment.

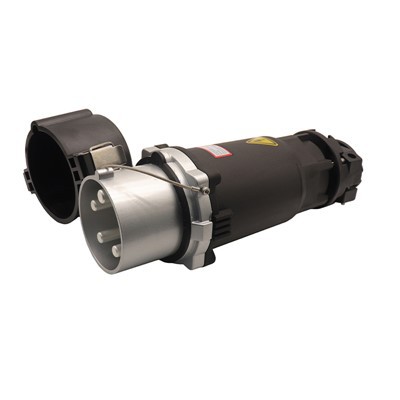

Large Current Industrial Plug



Large Current Industrial Plug factory



Customization & Selection

Selecting the correct high-current plug socket requires matching electrical ratings and environmental constraints to your system architecture. hfcee.com supports OEM engineering customization.


Current & Voltage Rating: Select contact sizes matching your continuous load plus a minimum 20% safety margin.


Pin Configuration: Available in single-pole (unipolar) for high DC distribution or multi-pole configurations with integrated protective earth (PE) pins.


Cable Termination Style: Choose between crimp barrels for high-vibration environments, threaded studs for busbar connections, or screw terminals for field maintenance.


Housing Finishes: Standard industrial powder-coated aluminum or specialized salt-spray resistant anodization for marine applications.



Quality Control & Manufacturing Standards


Manufacturing consistency at hfcee.com is verified through strict in-line inspection protocols.

Raw Material Verification

Spectrometric analysis on incoming copper bar stock to ensure electrical conductivity exceeds 98 percent IACS.

Dimensional Inspection

2.5D optical image projectors verify pin pitch, housing tolerances, and thread accuracy within plus or minus 0.02 millimeters.

Electrical Testing

100% automated test bench checks for continuity, dielectric breakdown voltage, and contact resistance prior to packaging.

Environmental Stress Testing

Periodic sample testing in salt spray chambers (ASTM B117) and thermal shock ovens to validate plating integrity and seal durability.



Packaging & Shipping





Packaging Configuration

Anti-static blister trays and individual protective caps prevent pin bending and contamination during transit. Bulk industrial cartons include desiccant packs for moisture control.



Traceability

Each outer carton is labeled with part number, batch number, production date, and compliance marks.



Logistics Support

Standard export-grade palletization compatible with air and ocean freight forwarding. Custom labeling and barcode integration available for direct warehouse stocking.







Frequently Asked Questions





Q: How do these connectors prevent accidental disconnection under heavy machine vibration?

A: Industrial power connectors utilize positive mechanical locking systems—such as threaded coupling nuts, internal bayonet pins with spring-loaded detents, or quick-release latches. These designs require intentional manual actuation to unlock, resisting vibrational loosening per IEC 60512 standards.

Q: Can hfcee.com supply custom wire harnesses attached to these plug sockets?

A: Yes. We offer complete cable assembly services, cutting and stripping high-gauge copper cables (up to 120 square millimeters), hydraulic crimping, and pull-force testing to deliver ready-to-install interconnect solutions.

Q: What certifications and compliance do these plug sockets carry?

A: Our connectors are manufactured in compliance with IEC 61984 / IEC 60512 standards and are fully RoHS and REACH compliant. Third-party test reports and UL component recognition files can be provided upon request for specific product series intended for global export.

Q: What is the standard minimum order quantity (MOQ) for custom shell colors or pin layouts?

A: Standard catalog items have no strict MOQ for sample evaluation. For custom pin configurations, specialized housing colors, or laser-etched OEM branding, standard MOQs typically start at 100 to 500 pieces per production run depending on tooling requirements.



modular-1
Request a Quote & Engineering Support

To receive a formal quotation, 3D CAD files, or evaluation samples for your project, please provide the following details to our engineering sales team at hfcee.com:
Part Number or Electrical Requirements (Rated Current, Voltage, Number of Poles)
Target Application & Environmental Conditions (IP rating needed, operating temperature)
Estimated Annual Usage / Batch Quantity
Required Cable Size / Termination Type
