Multiple Outlet Socket

Product Overview



The hfcee Multiple Outlet Socket series provides centralized power distribution for industrial control enclosures, test benches, and commercial equipment assemblies. Engineered for continuous-duty electrical loads, these units integrate impact-resistant housings with heavy-gauge internal copper busbars to minimize resistance and heat generation. Standardized mounting profiles allow direct integration into standard 19-inch racks, machinery chassis, and workstation frames.



Key Features

Unbroken Internal Busbar Architecture

Solid copper internal bars eliminate internal wiring bottlenecks, reducing contact resistance and thermal accumulation during sustained high-amperage draws.


Flame-Retardant Structural Housing

Extruded aluminum alloy profiles (AL6063-T5) or UL94-V0 rated engineering plastics provide high mechanical rigidity and resistance to thermal degradation.

Integrated Overload Protection

Built-in thermal circuit breakers (manual reset) disconnect power automatically when current thresholds exceed rated limits.

Secure Mechanical Retention

Spring-loaded phosphor bronze contact clips maintain consistent insertion force and electrical contact pressure across thousands of mating cycles.

Flexible Mounting Configuration

Multi-directional mounting brackets support horizontal, vertical, and surface-screw installations without specialized adapters.



Technical Specifications



Parameter

Specification Range

Rated Voltage

110V – 250V AC (Single Phase)

Rated Current

10A, 13A, 15A, 16A (Dependent on regional standard)

Maximum Power Load

Up to 3500W / 4000W (at 250V / 16A)

Socket Standards

CEE 7/4 (Schuko), BS 1363 (UK), NEMA 5-15 / 5-20 (US), IEC 60320 (C13/C19)

Housing Material

Anodized Aluminum Alloy (AL6063-T5) / Flame-Retardant PC-ABS (UL94-V0)

Internal Conductor

Thick-gauge solid copper strip (Thickness: 0.5mm – 0.8mm)

Protection Options

Thermal Circuit Breaker, Surge Protection Module (MOV), Master Switch with LED Indicator

Cable Specification

H05VV-F 3G1.5mm² / 3G2.5mm² or SJT 14AWG / 12AWG

Operating Temperature

-20°C to +60°C

Certifications

CE, RoHS, UL/ETL Compliant component options available



Product Types

Industrial Rack-Mount Series: 1U/1.5U 19-inch enclosures for server and automation racks.


Heavy-Duty Benchtop Series: Aluminum housing with master switch and mounting flanges.


OEM Custom Module Series: Bare-module boards and faceplates for equipment integration.


Industrial Rack-Mount Series: 19-inch rack-mountable units featuring aluminum chassis, designed for server cabinets, telecom frames, and automation control enclosures.


Heavy-Duty Benchtop Series: Robust benchtop power distribution blocks equipped with heavy-duty power cords, strain relief boots, and optional surge protection for laboratory and workshop environments.


OEM Custom Module Series: Uncased or specialized form-factor socket assemblies built to integrate directly into third-party machinery control panels and industrial equipment housings.

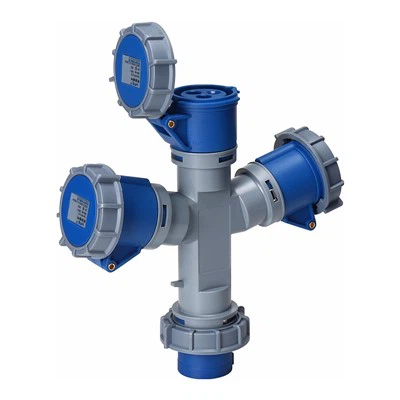

Industrial Multi Socket Plug



Applications

Industrial Automation Panels

Powering PLC racks, industrial PCs, and auxiliary control components within machinery enclosures.

Data Centers & IT Racks

Distributing power feeds inside server cabinets and network distribution frames.



Testing & R&D Laboratories

Providing reliable, switched multi-point power connections for test benches and measurement instruments.

Commercial Workspaces

Powering heavy-use workstations, assembly lines, and technical furniture installations.



Customization & Selection


Hfcee supports OEM/ODM customization for volume buyers to match exact electrical and mechanical integration requirements:

Electrical Configuration

Custom circuit breaker amperage ratings, integrated surge suppression (MOV clamping voltage adjustments), and EMI/RFI filter additions.

Physical Dimensions

Customized aluminum extrusion lengths, outlet counts (2-way to 12-way), and socket spacing configurations to prevent adapter blocking.

Wiring & Terminations

Custom cable lengths, specialized industrial plugs (IEC, Schuko, Twist-Lock), or terminal block inputs for hardwired installations.

Marking & Branding

Laser-etched company logos, custom part numbers, and specific regulatory label printing.



Industrial Multi Socket Plug factory



Quality Control

Manufacturing integrity is verified through rigorous multi-stage testing protocols on factory assembly lines:


Material Traceability: Incoming raw materials (copper strips, brass components, flame-retardant polymers) undergo spectral analysis and dimensional verification prior to warehouse release.


Dielectric Strength Testing: 100% of assembled units undergo automated high-voltage withstand testing (Hi-Pot test at 2000V/1 min) to verify insulation integrity.


Continuity & Polarity Inspection: Automated optical and electrical test benches check for correct phase, neutral, and ground wiring and internal continuity.


Mechanical Endurance Testing: Socket contact retention and switch actuation lifespans are verified using automated mechanical insertion rigs conforming to relevant IEC/UL standards.



Packaging & Shipping





Packaging Construction

Industrial-grade corrugated cartons featuring individual protective polyethylene sleeves and corrugated partition dividers to prevent surface scratching and housing deformation during transit.



Bulk Palletization

Standardized export pallets secured with edge protectors, moisture-barrier wrapping, and strapping suitable for containerized sea freight or air cargo.



Logistics Support:

Direct FOB/EXW shipping from manufacturing facilities with complete customs documentation, material test reports, and certificate of conformity (CoC) provided upon shipment.







Frequently Asked Questions





Q: Do these units support high-draw industrial equipment without thermal degradation?

A: Yes. Unlike standard residential power strips utilizing thin wire jumper links, hfcee units use continuous solid copper busbars (up to 0.8mm thickness) and high-conductivity brass contacts. This architecture minimizes electrical resistance, keeping operating temperatures stable under continuous 16A / 250V loads.

Q: What certifications do hfcee multiple outlet sockets carry for export markets?

A: Our standard production lines comply with CE and RoHS directives. For North American markets, variants built with UL/ETL-listed components and cords can be manufactured upon request to satisfy local regulatory compliance requirements.

Q: Can the internal circuit breaker be reset after an overload event?

A: Yes. All units equipped with overload protection feature a manual push-to-reset thermal circuit breaker button. Once the overload condition is cleared and the unit cools down, pressing the breaker button restores power without requiring fuse replacements.

Q: What is the lead time for standard orders versus custom OEM orders?

A: Standard catalog orders ship within 15 to 20 business days upon order confirmation. Custom OEM/ODM orders typically require 25 to 35 business days, which includes tooling adjustments, sample approval, and pilot run verification.

Q: How do you prevent loose connections between plugs and sockets over extended use?

A: The internal contact clips are manufactured from high-elasticity phosphor bronze. This material retains its spring memory across thousands of insertion cycles, maintaining consistent clamping force on inserted plug pins to prevent arcing and loose connections.



modular-1
Request a Quote & Engineering Support

To receive a technical quotation, 2D/3D CAD specification drawings, or engineering samples for your project, contact our engineering sales team directly through hfcee.com or submit your technical parameters (Voltage, Amperage, Socket Type, Quantity, and Destination) to our sourcing desk.
Request Technical Datasheet (PDF) & Sample

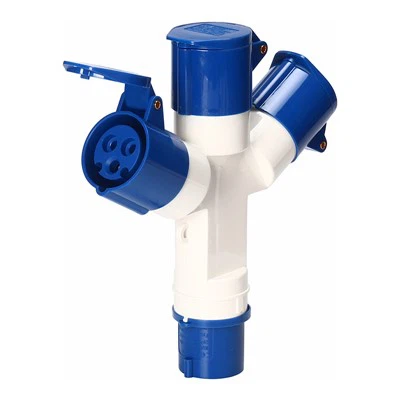

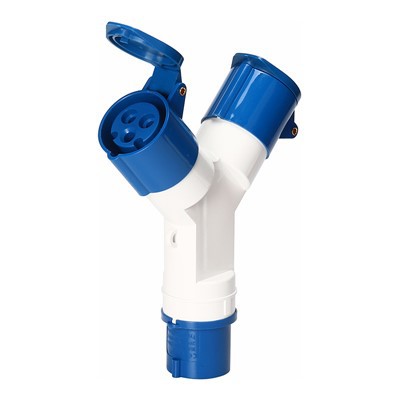

Zhejiang Hefeng Electric Co., Ltd. is one of the most professional multiple outlet socket manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy durable multiple outlet socket made in China here from our factory. Also, OEM service is available. 3 phase industrial plug socket, 3 Way Industrial Plug, Industrial Multiple Socket
