Wall Mount Industrial Socket

Product Overview



Surface-mounted industrial power sockets engineered for heavy-duty electrical distribution in harsh industrial environments. Built in compliance with IEC 60309 standards, these receptacles provide secure, polarized power interfaces for machinery, temporary site distribution, and high-load equipment. Enclosures are injection-molded from virgin Polyamide 6 (PA6) to withstand mechanical impact, UV exposure, and aggressive chemical washdowns. Captive cover assemblies and internal spring mechanisms maintain ingress protection integrity across operational cycles.



Key Features

Spring-Loaded Protective Lids

Stainless steel torsion springs ensure the hinged cover snaps closed automatically upon plug disconnection, preserving the IP seal.

Solid Brass Contact Sleeves

Precision-machined copper alloy contacts minimize contact resistance, preventing localized overheating during continuous full-load current draw.

Captive Stainless Steel Fasteners

Enclosure and cover screws are retained within molded channels to prevent loss during on-site installation and maintenance.

Integrated Knockout Entries

Pre-molded metric cable entries (M25 to M63 depending on amperage) on top and bottom accommodate standard cable glands or rigid conduit fittings.



Technical Specifications



Parameter

Specification Details

Rated Current (In)

16A, 32A, 63A, 125A

Rated Voltage (Ue)

110V-130V-, 200V-250V-, 380V-415V-

Pole Configuration

2P+E, 3P+E, 3P+N+E

Rated Frequency

50Hz / 60Hz

Ingress Protection

IP44 (Splash-proof) / IP67 (Watertight)

Dielectric Strength

2500V AC (1 min test duration)

Insulation Resistance

>= 500 Mohm at 500V DC

Housing Material

Polyamide 6 (PA6 / Nylon)

Contact Material

Copper alloy (nickel-plated options available)

Ambient Operating Temperature

-25°C to +40°C (Peak +85°C)

Standard Compliance

IEC 60309-1, IEC 60309-2, EN 60309



Product Types

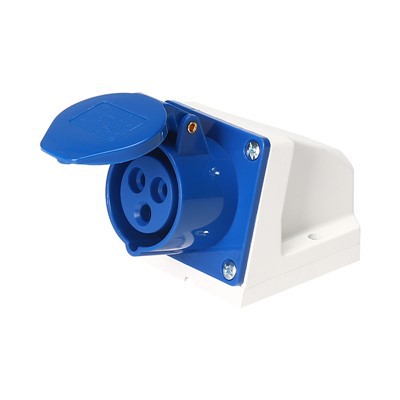

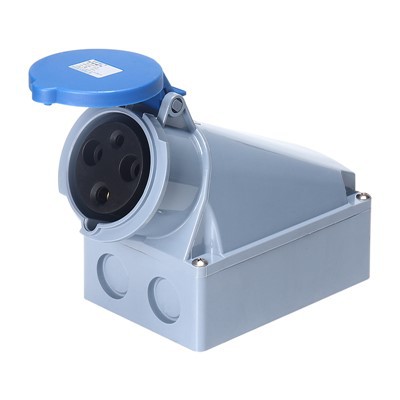

Standard Surface Socket (IP44)
Application:
Indoor workshops, assembly lines, and commercial facilities.
Characteristics: Splash-proof hinged lid, direct cable entry, cost-effective power distribution.

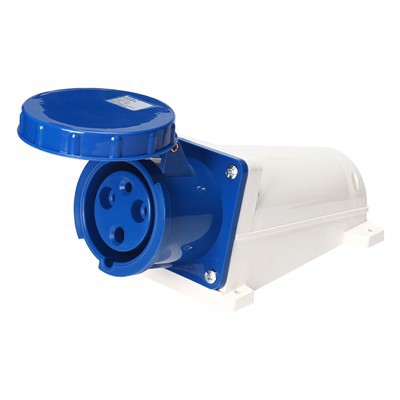

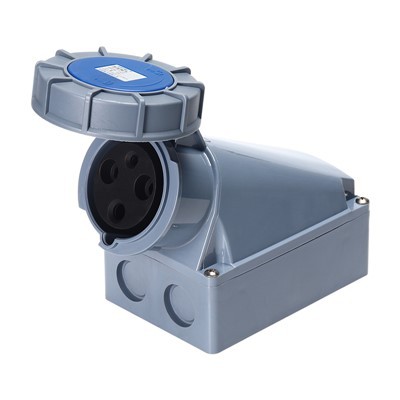

Watertight Industrial Socket (IP67)
Application: Outdoor construction zones, wastewater treatment plants, and washdown areas.
Characteristics: Threaded locking ring or secure latch seal, immersion-resistant housing gasket.


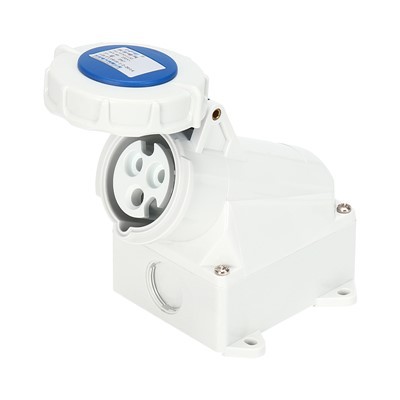

Angled Wall Mount Socket
Application:
Fixed machine chassis and compact control panels.
Characteristics: 15-degree downward mounting angle reduces mechanical strain on connected cables.

Surface Mount Electrical Socket





Applications

Machine Tool Manufacturing

Power input ports on CNC machining centers, stamping presses, and industrial automation control cabinets.

Temporary Construction Power

Distribution boards (Temporary Power Distribution Units - TPDU) supplying heavy-duty portable tools, welders, and site lighting towers.

Food & Beverage Processing

Zones requiring routine high-pressure chemical cleaning (utilizing IP67 variants with detergent-resistant PA6).

Logistics & Material Handling

Automated conveyor drive panels and battery-charging stations for heavy industrial trucks.





Customization & Selection


Voltage Color Coding

Standardized international color identification (Yellow for 110V, Blue for 230V, Red for 400V). Custom OEM shell colors available upon request.

Terminal Variations

Available with traditional screw terminals or tool-free screwless spring-clamp terminals for reduced installation time.

Auxiliary Contact Integration

Select models support pilot contacts for electrical interlock signaling or remote operational status monitoring.

OEM Laser Branding

Permanent laser etching or mold embossing of customer logos, custom part numbers, and rating data directly onto the housing exterior.



Surface Mount Electrical Socket factory



Quality Control

Raw Material Verification: Virgin PA6 resin granules undergo melt flow index (MFI) and moisture content testing prior to injection molding.


Dimensional Inspection: Coordinate measuring machines (CMM) verify contact pin alignment, aperture tolerances, and enclosure wall thickness.


Ingress Protection Validation: IP67 production samples undergo water submersion and dust chamber testing per IEC 60529.


Electrical & Thermal Testing: Routine dielectric withstand tests, contact resistance measurement, and temperature rise verification under full rated current load.


Manufacturing Certifications: Produced in facilities operating under ISO 9001 quality management systems; products carry CE and CB test verification reports.



Packaging & Shipping

Packaging Structure

Individual polyethylene bags with moisture absorbents, packed into corrugated inner cartons, then palletized in export-grade reinforced master cartons.

Traceability Labeling

Barcoded master carton labels display SKU, amperage, voltage rating, production batch number, net/gross weight, and dimensions.

Logistics Management

Factory direct shipments via FOB, CIF, or DDP terms; optimized container loading for 20ft/40ft maritime freight or air courier dispatch for urgent sample requests.





FAQ





Q: Are the terminal blocks compatible with aluminum cables, or strictly copper?

A: Standard terminal blocks are engineered for stranded or solid copper conductors. For installations requiring aluminum cables, specify bi-metallic terminal adapters or consult our engineering department to ensure proper galvanic corrosion prevention and torque compliance.

Q: How does the PA6 housing material perform under direct outdoor UV exposure?

A: Enclosures are injection-graded with specialized UV-stabilizer additives blended directly into the Polyamide 6 matrix. This prevents polymer degradation, surface chalking, or structural embrittlement during prolonged exposure to direct sunlight.

Q: Are the internal contact sleeves manufactured from pure copper?

A: Contacts are forged from high-conductivity copper alloys (brass) selected for balanced spring retention and minimal electrical resistance. Nickel-plated contact options are available for highly corrosive chemical or marine environments to prevent oxidation.

Q: What is the minimum order quantity (MOQ) for custom OEM shell colors or private labeling?

A: Standard catalog items are stocked for low-MOQ distributor orders. Custom shell colors, molded private-label branding, or specialized packaging require an MOQ starting at 500 to 1,000 pieces per SKU depending on tooling configuration.

Q: What compliance documentation is provided with factory shipments?

A: Each shipment includes complete documentation comprising CE Declarations of Conformity, IEC 60309 type-test reports from accredited laboratories, and factory inspection sheets linked to specific production batch numbers.



modular-1
Request a Quote

To obtain technical drawings (2D/3D CAD), volume pricing, or distribution terms for your upcoming project, submit your amperage, voltage, and quantity requirements directly to our engineering team at hfcee.com.
