125A IP67 Single Phase Industrial Plug
Single phase industrial plug Constructed with durability in mind, this industrial plug features a rugged housing that can withstand harsh environmental conditions, including exposure to dust, water, and other contaminants. Its IP67 rating ensures complete protection against dust ingress and temporary immersion in water, making it suitable for both indoor and outdoor use.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 125A IP67 Single Phase Industrial Plug in China. With abundant experience, we warmly welcome you to buy high-grade 125A IP67 Single Phase Industrial Plug for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Constructed for durability and reliability, this 125A 5P IP67 industrial plug features a rugged housing designed to withstand harsh industrial environments, including exposure to dust, water, and other contaminants. With an IP67 protection rating, it provides complete dust protection and resistance to temporary water immersion, making it suitable for both indoor and outdoor applications.
The 5-pin configuration ensures a secure and efficient electrical connection, with each pin designed for specific phase and grounding functions to deliver safe and stable power transmission. Its ergonomic design allows for easy installation and removal, even in demanding working conditions.
Engineered for long-lasting performance, this heavy-duty industrial plug helps reduce downtime and maintenance costs. The robust construction and high-quality materials ensure reliable operation in challenging environments such as factories, construction sites, power distribution systems, and industrial machinery applications.
The 125A 5P IP67 Industrial Plug combines high current capacity, rugged durability, and excellent environmental protection, making it an ideal solution for reliable industrial power connections.
Products Features
Screw terminals
Single part body with robust design
Cable gland and sealing
Strain relief and protection against kinking
Products with pilot contact
Characteristic
Ip67 Industrial Plug
1.This Ip67 Industrial Plug are constructed for extreme operating conditions.
They are of easy installation, long life and high reliability. They are widely used since many years ago in the machine industry, crane industry, construction industry, trains and cars.
2.The cases and inlets are made of high-grade plastic nylon 66. The material has extremely good insulation ability and it is unbreakable, wearable long-time durable up to +120°C, resistant against oil, gasoline and salt water, almost non-aging,extremely cold-proof and splash-proof.
3.All units not only fit with the same system but also are fully compatible with units.
Technical Parameter
|
Product name |
Industrial plug |
||
|
Current |
63A/125A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Item code |
63A |
3 pin (2P+E) |
HF-033/HF-033-4 |
|
4 pin (3P+E) |
HF-034 |
||
|
5 pin (3P+N+E) |
HF-035 |
||
|
125A |
3 pin (2P+E) |
HF-043/HF-043-4 |
|
|
4 pin (3P+E) |
HF-044 |
||
|
5 pin (3P+N+E) |
HF-045 |
||
|
Protection degree |
IP67 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||

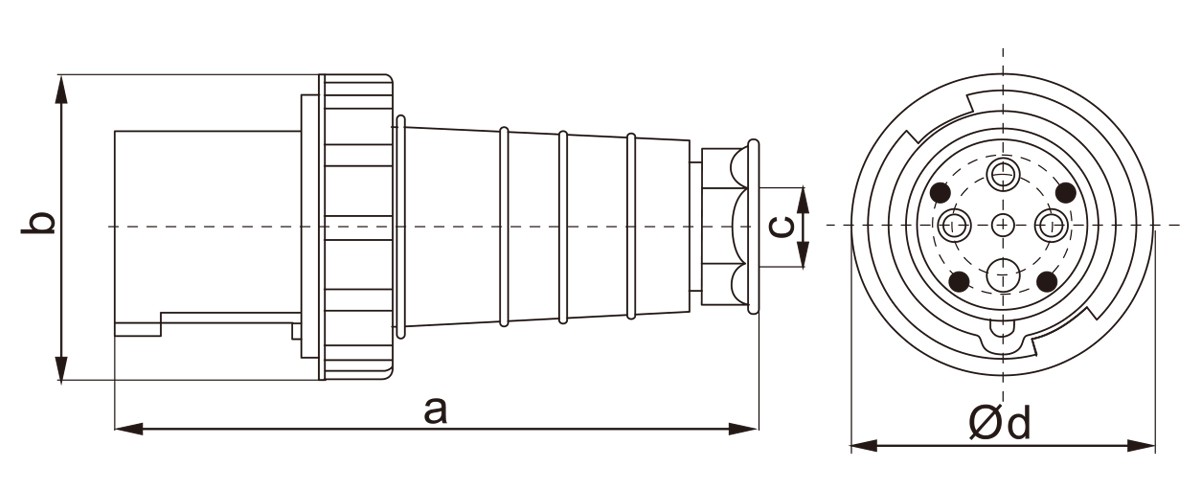

Dimensions
|
Current |
63A |
125A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
231.5 |
231.5 |
231.5 |
293 |
293 |
293 |
|
b |
110 |
110 |
110 |
125 |
125 |
125 |
|
c |
16-38 |
16-38 |
16-38 |
30-50 |
30-50 |
30-50 |
|
φ |
110 |
110 |
110 |
125 |
125 |
125 |
|
Cable cross-section are(m m²) |
6~16 |
16~50 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
