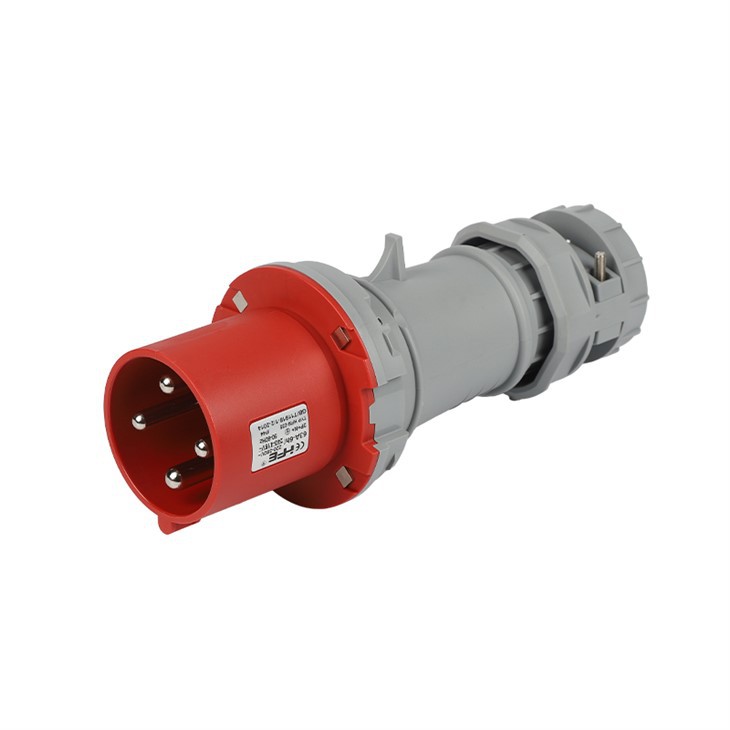

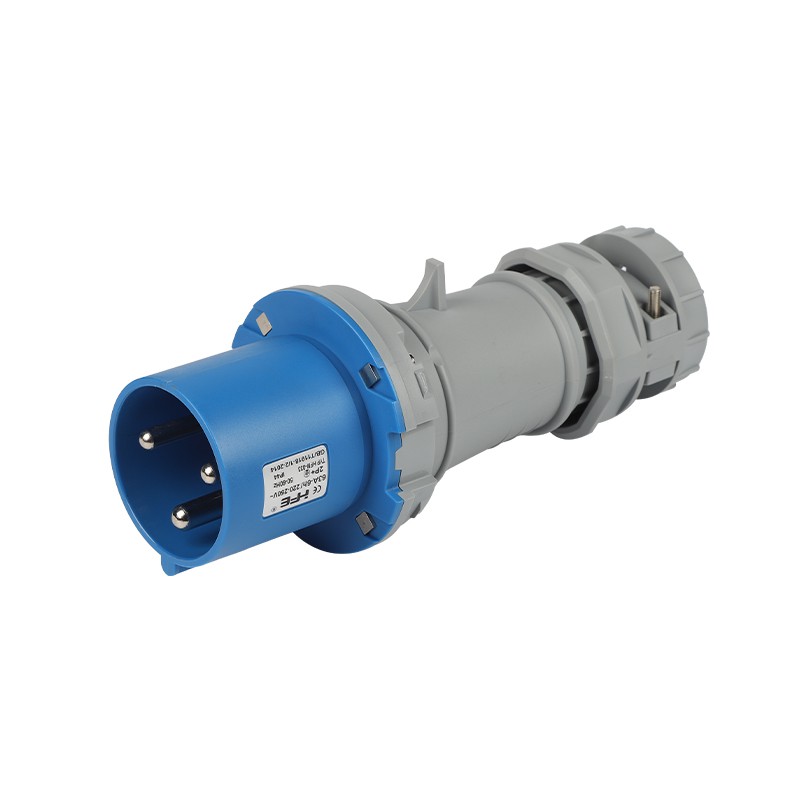

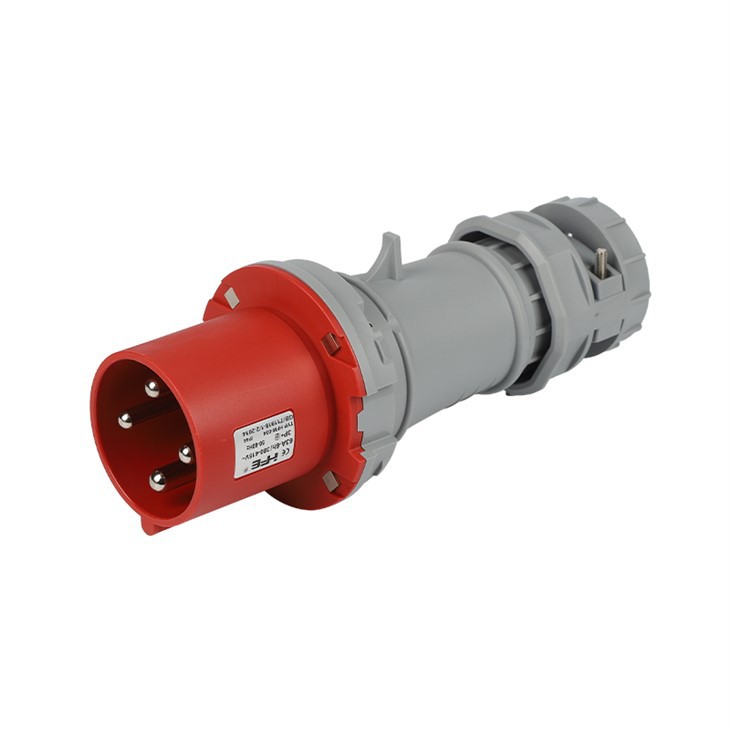

European Standard Industrial Plug

HFM-033/HFM-033-4
European standard industrial plug are suitable for various stage lighting equipment, small generators, lighting equipment, inverters and other power supply equipment.

Send Inquiry

Product Introduction

Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of european standard industrial plug in China. With abundant experience, we warmly welcome you to buy high-grade european standard industrial plug for sale here from our factory. All OEM products are with high quality and low price.

Scope of application

European standard industrial plug are suitable for various stage lighting equipment, small generators, lighting equipment, inverters and other power supply equipment.

Uses

The outer casing of the product is made of nylon PA66, which has corrosion resistance, high strength and high flame retardant properties. The insert part is made of copper and has high elasticity and continuity. These products are ideal for power connections in harsh environments.

The industrial plugs are widely used in the power connection of airports, docks and outdoor construction sites, and can also be used in many electromechanical equipment, refrigeration products, kitchen equipment, stage lighting, etc.

All products are divided into two levels of protection: one is IP44 waterproof splash, and the other is IP67 can be used in very humid places.

Technical Parameter

Product name	Industrial plug
Current	63A
Earth contact position	Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available
Ltem code	63A	3 pin (2P+E)	HFM-033/HFM-033-4
		4 pin (3P+E)	HFM-034/HFM-034-4
		5 pin (3P+N+E)	HFM-035/HFM-035-4
Protection degree	IP44
Voltage	110-130V~,220-250V~,380-415~,415V~
Standard	EN/ IEC 60309-1/2
Certification	CE, ROHS, TUV, CB

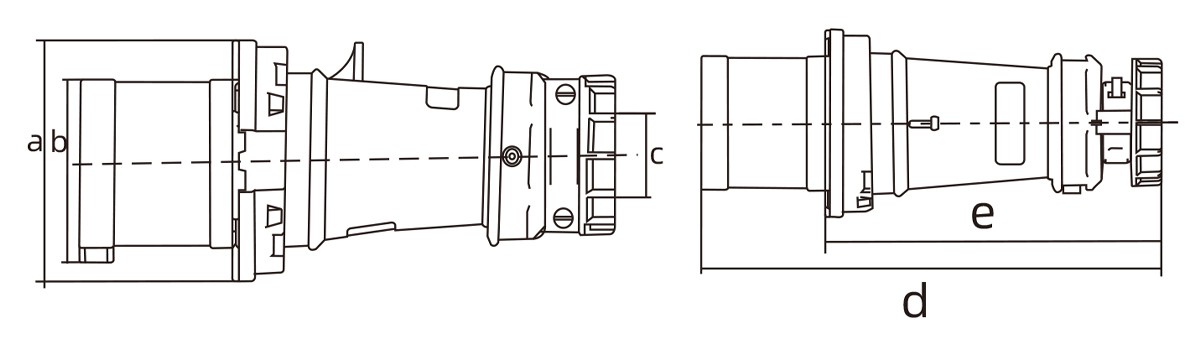

Dimensions

product-1200-362

Current	63A
number of poles	3 pin (2P+E)	4 pin (3P+E)	5 pin (3P+N+E)
a	101	101	101
b	75.5	75.5	75.5
C	36.5	36.5	36.5
d	240	240	240
e	174	174	174
Cable cross-section area(m m²)	10~16

※ Customization is available for special voltages, grounding locations, colors, etc.

FAQ

Q: What kind of payment do you accept ? Can I pay RMB ?

A: L/C and TT all are acceptable. If by TT should 30% T/T as deposit and 70% balance against copy of B/L.And you also can pay money in RMB.

Q: Can you make this product with my favourite color?

A: Yes,We can custom-made for you ,the MOQ according the type of product.

Q: What is the maximum current rating for the Industrial Plug ?

A: It is designed to handle electrical currents of up to 125 amps. This high current rating makes it suitable for applications that require substantial electrical power, such as large machinery and industrial systems.
