Combined Socket Box

Product Overview



The Socket Box integrates IEC 60309 industrial pin-and-sleeve outlets, modular circuit protection devices (MCB/RCD), and terminal blocks into a pre-wired, high-integrity polymer enclosure. Engineered for demanding power distribution nodes, it steps down primary industrial feeds into protected, accessible circuits for machinery, portable tools, and temporary infrastructure. Constructed with flame-resistant thermoplastics and secure mechanical interlocks, each assembly is built to maintain continuous electrical performance under high mechanical stress, dust exposure, and moisture ingress.



Key Features

Mechanical Interlock Protection

Interlocked socket options prevent plug insertion or withdrawal under load, physically eliminating arc flash hazards during switching operations.

Impact-Resistant Polymer Body

High-pressure injection-molded from UV-stabilized Polycarbonate (PC) and ABS engineering blends, yielding IK08 to IK10 mechanical impact resistance.

Ingress Protection Sealing

Continuous polyurethane (PU) foam gasket poured in-place along the enclosure perimeter, ensuring sustained IP44 to IP67 protection ratings against water jets and airborne particulate matter.

Factory Pre-Wired Internal Busbars

Copper internal wiring and distribution blocks dimensioned strictly to match rated current limits, minimizing terminal heat rise during continuous full-load duty cycles.





Technical Specifications



Parameter

Specification

Rated Operational Voltage (Ue)

230V / 400V AC, 50/60Hz

Rated Current (In)

16A, 32A, 63A (Per socket branch)

Ingress Protection (IP Rating)

IP44 / IP54 / IP67

Mechanical Impact Resistance

IK08 to IK10 (Dependent on wall thickness and enclosure series)

Enclosure Material

Polycarbonate (PC) / ABS Alloy, Halogen-Free, UV-Stabilized

Flammability Rating

UL94 V-0 Self-Extinguishing

Operating Temperature Range

-25°C to +55°C

Cable Entry Knockouts

Metric thread knockouts (M20, M25, M32, M40) with optional compression glands

Compliance Standards

IEC 60309-1, IEC 60309-2, IEC 61439-4 (Construction site assemblies)



Product Types

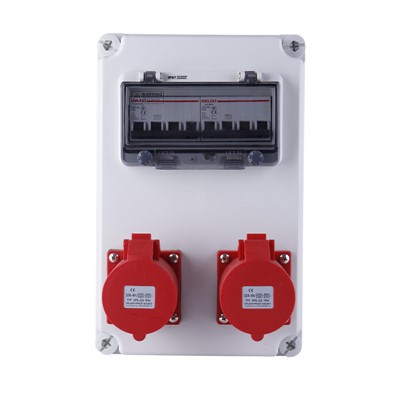

Surface Wall-Mounted Distribution Box

Fixed-installation enclosures engineered for permanent mounting on industrial plant walls, structural columns, or machine skids.

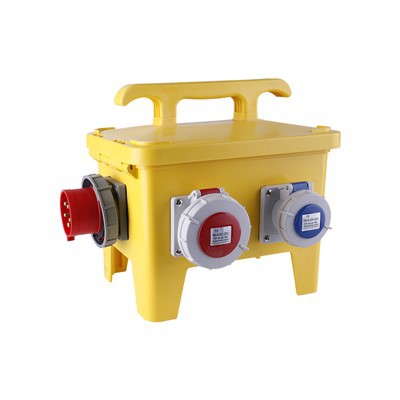

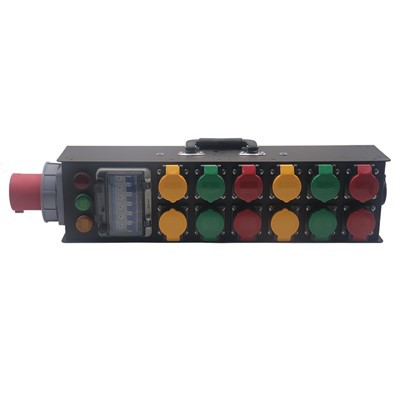

Portable Handheld / Stand Box

Rubberized or heavy-duty thermoplastic mobile units equipped with carrying handles or tubular steel floor stands for dynamic job-site deployment.

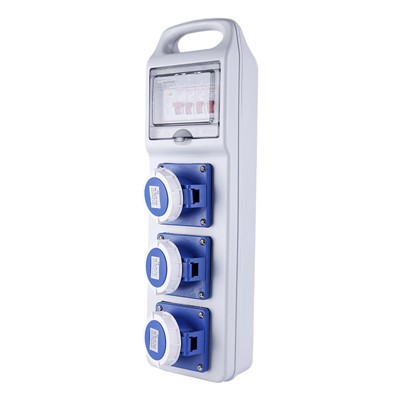

Custom Combination Box

Engineered assemblies pairing mixed amperage outlets (e.g., 16A 3P+N+E combined with 32A 3P+E sockets) protected by individual residual current circuit breakers.







Applications

Factory Automation & Machinery: Mounted directly onto production lines, robotic cells, and injection molding machinery to supply localized, protected maintenance power.


Construction & Infrastructure Sites: Deployed as temporary site distribution boards compliant with IEC 61439-4, enduring mud, heavy rain, and physical impact on outdoor jobsites.


Commercial Marine & Harbors: Salt-spray resistant enclosures providing shore-to-ship power connections and terminal deck electricity.


Temporary Event Power Grids: Outdoor festival staging and mobile broadcasting grids requiring rapid connection and reliable downstream fault isolation.

Mobile Power Box
Industrial Combination Socket Box for Power Distribution



Customization & Selection

Customization Options
Outlet Configurations: Custom integration of IEC 60309 industrial sockets alongside regional domestic formats (Schuko CEE 7/4, French E/F, UK BS 1363) per project Bill of Materials (BOM).
Component Brand Specification: Integration of designated circuit protection brands (e.g., Schneider, ABB, Siemens, or high-performance equivalent tiers) matching local specification requirements.
Enclosure Color Coding: Standard RAL 7035 light grey or safety yellow (RAL 1021) for high-visibility temporary power management.
Laser Marking & Circuit Labeling: Permanent laser-etched or silk-screened circuit identification, ratings, and corporate branding applied to the front cover.


Selection Guide
Calculate Load & Phase: Verify total connected ampacity and supply voltage requirements (Single-phase 230V vs. Three-phase 400V).
Define Ingress Environment: Specify IP44 for indoor protected workshops; select IP67 for outdoor washdown zones or maritime exposure.
Select Circuit Protection: Determine if individual socket residual current circuit breakers (RCCB/RCBO) or a single main upstream breaker is required.



top service industries


Incoming Raw Material Testing

Polymer injection pellets verified for melt mass-flow rate (MFR) and UL94 flammability thresholds prior to production.

Dimensional CMM Verification

Mold cavities measured via Coordinate Measuring Machine to guarantee exact gasket channel depths and cover seating tolerances.

Dielectric Strength Routine Test

100% of assembled units undergo a 2500V AC / 1-minute flash test between live parts and protective earth terminals.

Ingress Verification

Water spray and dust chamber validation performed in strict accordance with IEC 60529 on sampling lots.



Packaging & Shipping


Individual Protection

Each unit wrapped in anti-static polyethylene film, isolated with molded EPE foam padding, and boxed in heavy-duty double-wall corrugated cartons.

Palletization

Cartons stacked on ISPM 15 heat-treated wooden pallets, secured with corner edge protectors, high-tensile strapping, and stretch wrap.

Export Logistics

FOB, CIF, and DDP fulfillment shipped directly from major ports (Ningbo/Shanghai) with complete technical documentation packages (Test Reports, Packing Lists, Certificates of Origin).





Frequently Asked Questions





Q: What is the standard lead time for catalog models versus custom-engineered socket boxes?

A: Standard catalog configurations ship within 7 to 10 working days. Custom OEM assemblies requiring specialized socket layouts, specific breaker brands, or custom silk-screening require 15 to 25 working days following engineering drawing and BOM approval.

Q: Are internal distribution components pre-wired prior to delivery?

A: Yes. Units are delivered fully pre-wired. Internal copper busbars, wiring harnesses, and breakers are factory-assembled and torque-verified. Terminal blocks are left accessible for direct connection of incoming main feeder cables on-site.

Q: Can these enclosures withstand direct UV exposure and heavy rainfall?

A: Yes, provided models featuring UV-stabilized polycarbonate and IP67 ratings are selected. The poured polyurethane perimeter seal and hinged protective windows prevent moisture entry during driving rain, while the polymer formulation resists UV embrittlement.

Q: Do your combined socket boxes carry international compliance testing documentation?

A: Yes. Assemblies are designed and manufactured in compliance with IEC 60309 and IEC 61439 standards. Complete routine test reports covering dielectric withstand, temperature rise limits, and mechanical durability are available upon request.

Q: What is the Minimum Order Quantity (MOQ) for custom colors or laser-etched branding?

A: The MOQ for custom enclosure colors (such as safety yellow) or personalized laser branding is 50 pieces per model variant. Standard RAL 7035 grey catalog items have no strict MOQ for initial sample evaluations.

Q: What cable entry options are available on the enclosure housing?

A: Enclosures feature pre-marked knockouts and molded metric thread entries (M20 through M40) across the top and bottom faces. IP68 nylon cable glands or closed-blind grommets can be pre-fitted according to your incoming cable outer diameters.
