Key Features

Die-Cast Aluminum Housings

Powder-coated surface treatment withstands salt spray testing up to 500 hours, protecting internal circuits from corrosive shop-floor environments.

Modular Insert Flexibility

Interchangeable contact inserts support mixed configurations of power (up to 200A), signal (up to 108 pins), and pneumatic lines within a single housing.

IP65 to IP68 Sealing

Integrated NBR/Neoprene profile gaskets seal the mating interface against fluid splash, coolant, and particulate ingress.

High-Density Termination

Screw, crimp, and cage-clamp terminal options accommodate solid and stranded conductors from 0.14 mm2 to 35 mm2.



Technical Specifications



Parameter

Specification

Test Standard

Housing Material

Die-cast aluminum alloy (ADC12)

ASTM B85

Surface Finish

Powder coating (RAL 7037 grey / black optional)

ISO 9227 (Salt Spray)

Contact Material

Copper alloy, silver or gold plated

IEC 60512

Rated Current

10A, 16A, 40A, up to 200A (depending on insert model)

IEC 60512-3

Rated Voltage

250V, 400V, 500V, 690V AC/DC

IEC 60664-1

Contact Resistance

= 10^10 Ω

IEC 60512-3-1

Degree of Protection

IP65 / IP68 (mated condition)

IEC 60529

Temperature Range

-40°C to +125°C (short term up to +140°C)

IEC 60068-1

Mating Cycles

>= 500 insertion cycles

IEC 60512-5-9

Certifications

CE, RoHS, ISO 9001:2015 (Cert. No: [Insert Number]), UL Pending

—



Product Types

Rectangular Heavy-Duty Connectors (HDC)

Available in standard housing sizes (B6, B10, B16, B24) for control cabinet bulkheads and machine interfaces.

Modular Connector Frames

Hinged frames accepting multi-service modules (data, compressed air, high current) inside standard HDC hoods.

High-Current Power Connectors

Single-pole and multi-pole configurations rated for heavy machinery drives and energy storage systems.

EMC-Shielded Connectors

Conductive surface housings with internal EMC cable glands for high-frequency noise suppression in automated drive systems.





Applications

Industrial Automation: Control panel internal wiring, PLC rack interconnects, and decentralized I/O distribution boxes.


Robotics & Handling: Multi-axis robotic arm base connections, teach pendants, and end-effector tool changers.


Machine Tools: CNC machining centers, stamping presses, and automated material handling conveyors.


Renewable Energy: Wind turbine pitch control cabinets and solar inverter junction boxes.

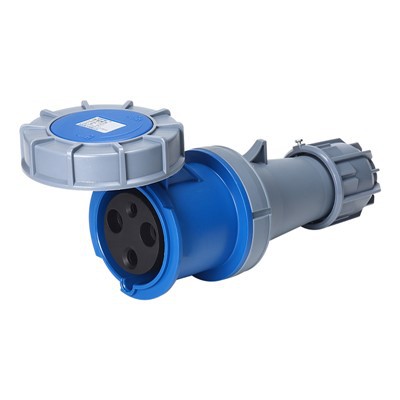

3 Phase Industrial Connector



Customization & Selection


HFCEE supports custom engineering to match specific electrical BOM requirements:

Pin Configuration

Customized contact layouts for mixed power and high-speed data (RJ45/Profibus modules).

Housing Dimensions & Threads

Metric (M), PG, or NPT cable entry thread sizing on request.

Laser Marking

Custom part numbers, circuit diagrams, or company logos laser-etched onto housing surfaces.

Selection Guide

Match your current rating, wire cross-section, and enclosure space constraints using our technical matrix or contact our application engineers for cross-reference assistance against major industry footprints.



3 Phase Industrial Connector factory



Quality Control

Factory verification snapshot: Every batch undergoes rigorous dimensional checking via CMM and 100% automated electrical testing before leaving our production lines.
Raw Material Verification: Spectrometric analysis on incoming aluminum ingots and copper rods to verify alloy composition.
Dimensional Inspection: 3D coordinate measuring machines (CMM) verify housing tolerance and pin alignment accuracy within ± 0.02 mm.
Electrical Testing: 100% automated test benches check dielectric withstand voltage (up to 3.5kV), continuity, and insulation resistance prior to packaging.
Environmental Stress Screening: Regular batch testing for salt spray corrosion resistance (ISO 9227), thermal shock, and mechanical insertion force longevity.



Packaging & Shipping





Packaging Configuration

Anti-static blister trays and individual compartmentalized cartons prevent contact bending and surface scratching during transit.



Labeling

Barcoded outer cartons display part number, batch code, quantity, and RoHS compliance status for warehouse inventory scanning.



Logistics Support

Factory-direct air and ocean freight shipping with standard export-grade corrugated master cartons and palletization.







Frequently Asked Questions





Q: Are HFCEE industrial connectors mechanically and electrically compatible with HARTING or ILME series?

A: Yes. HFCEE rectangular connectors follow standard industry sizing rules (e.g., Harting Han B series footprints), allowing direct interchangeability of inserts, hoods, and housings in existing panel cutouts without redesigning enclosures.

Q: What wire termination methods are available for the contact inserts?

A: We offer screw terminals for field maintenance, crimp terminals for high-vibration applications requiring high tensile strength, and cage-clamp (spring-loaded) terminals for tool-free, fast assembly in control cabinet manufacturing.

Q: How do I select the correct IP rating for outdoor applications?

A: For standard industrial plants with mild dust and liquid exposure, IP65 housings with profile gaskets are sufficient. For continuous outdoor exposure, washdown environments, or submersion risks, select IP68 configurations paired with matching cable glands.

Q: What is the typical lead time for standard catalog items versus custom inserts?

A: Standard stock items ship within 3 to 5 business days. Custom insert configurations, specialized plating, or non-standard housing thread sizes typically require 15 to 25 business days for tooling and production.



modular-1
Request a Quote & Free Samples

Need technical drawings, sample kits, or volume pricing for your upcoming project? Free engineering samples are available for qualified OEM evaluation. Submit your requirements directly to our engineering team:

Email: hefengplug@chinahfe.com

Response Time: Within 24 business hours.

Required Inquiry Details: Part number or equivalent cross-reference, estimated annual volume, target delivery schedule, and specific environmental requirements.
