Industrial Electrical Plugs
Industrial electrical plugs are heavy-duty electrical connectors used in industrial environments. They're built to handle high voltage and current, ensuring reliable power supply to heavy machinery. These plugs prioritize durability, safety, and compatibility with different power systems, contributing to the efficiency and safety of industrial operations.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of industrial electrical plugs in China. With abundant experience, we warmly welcome you to buy high-grade industrial electrical plugs for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Industrial electrical plugs are heavy-duty electrical connectors used in industrial environments. They're built to handle high voltage and current, ensuring reliable power supply to heavy machinery. These plugs prioritize durability, safety, and compatibility with different power systems, contributing to the efficiency and safety of industrial operations. The current is generally divided into 16a, 32a, 63A, 125A, 250A and 420a. The protection grade can be divided into IP44 and IP67, which are relatively conventional. Generally, it is used together with industrial socket and industrial connector
Features
(1) The housing of the industrial plug is represented by different colors and different rated voltages and frequencies.
(2) The position, number of stages and diameter of the grounding contacts of different specifications are different. Only the same specifications can be plugged in to prevent mis-insertion.
(3) The shell is made of high-quality engineering plastics, which has high strength, impact resistance and is not afraid of pedaling. It can be used indoors or outdoors. Suitable for alpine and tropical areas.
(4) High degree of protection, the high performance industrial plug can be used for dust, water, corrosion and other occasions.
(5) The industrial plug complies with the IEC309 standard and is internationally applicable.
Technical Parameter
|
Product name |
Industrial plug |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HFM-0132/HFM-0132-4 |
|
4 pin (3P+E) |
HFM-0142/HFM-0142-4 |
||
|
5 pin (3P+N+E) |
HFM-0152/HFM-0152-4 |
||
|
32A |
3 pin (2P+E) |
HFM-0232/HFM-0232-4 |
|
|
4 pin (3P+E) |
HFM-0242/HFM-0242-4 |
||
|
5 pin (3P+N+E) |
HFM-0252/HFM-0252-4 |
||
|
Protection degree |
IP67 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||

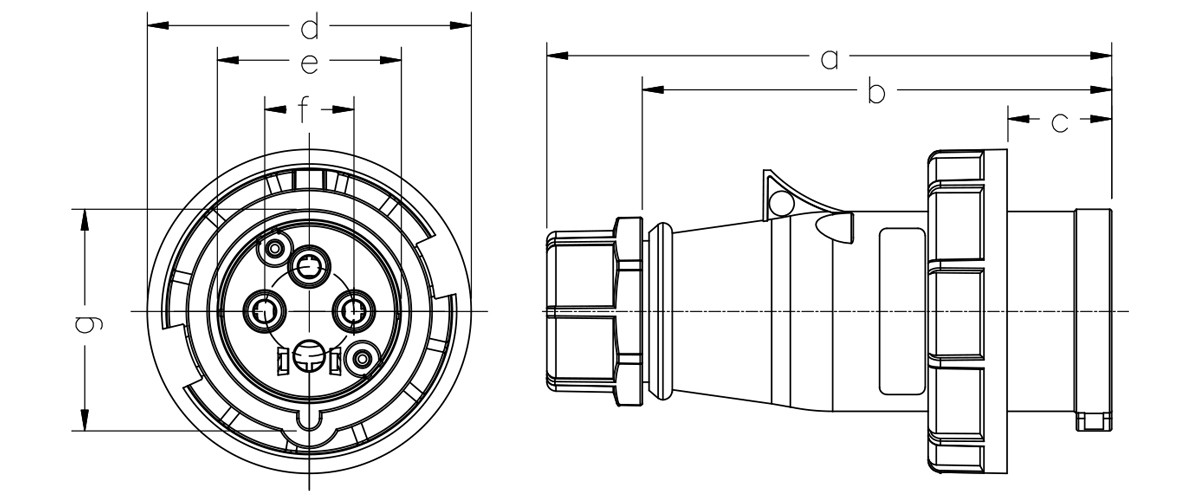

Dimensions

|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
138 |
144 |
144 |
170 |
170 |
177 |
|
b |
115 |
120.5 |
120.5 |
141 |
141 |
148 |
|
C |
24.7 |
25.2 |
25.2 |
32.5 |
32.5 |
32.5 |
|
d |
70.2 |
78 |
87 |
93.3 |
93.3 |
101 |
|
e |
38.3 |
43.5 |
50.2 |
51 |
51 |
56.5 |
|
f |
17.5 |
21.5 |
26.5 |
25 |
25 |
30.3 |
|
g |
47 |
52.2 |
60 |
62.5 |
62.2 |
68.7 |
|
Cable cross-section area(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
About Us
Zhejiang Hefeng Electric is deeply engaged in the field of industrial electrical products, offering a wide range of core products with complete specifications. Its main products include industrial distribution boxes, industrial-specific plugs, industrial socket switches, waterproof protective boxes, and other series of electrical products. The company's products feature excellent dust protection, waterproof sealing, high-temperature resistance, and extreme cold resistance, with stable performance and strong compatibility. They can adapt to various complex and harsh industrial operating environments and are widely used in key industrial areas such as the steel industry, petrochemical industry, power facility construction, construction sites, and auxiliary equipment for plastic machinery, making the company a trusted provider of electrical connection solutions in the industry.
