Industrial Plug and Socket

Product Overview



Heavy-duty industrial plugs and sockets engineered for high-demand power distribution environments. Built strictly to IEC 60309 standards, these connectors secure reliable power transmission under extreme mechanical stress, moisture, and chemical exposure. Designed for industrial contractors, panel builders, and OEM machinery manufacturers requiring dependable electrical interfaces up to 125A.


First 12345 Last 1/5

Key Features

Shell Material

Virgin PA66 (Polyamide 66) thermoplastic housing offering high impact resistance, V0 flame retardancy, and stable performance across -40°C to +80°C.

Contact Pins

Solid nickel-plated brass contacts preventing galvanic corrosion and minimizing electrical resistance under continuous high-amperage loads.

Cable Sealing

Integrated external cable gland with internal rubber clamping grip providing IP44 or IP67 ingress protection against water jets and dust ingress.

Ergonomic Design

Deep-profile slotting and polarized keyways ensuring foolproof mating and preventing mismatching across different voltage/frequency configurations.



Technical Specifications



Parameter

Standard Range / Specification

Standard Compliance

IEC 60309-1, IEC 60309-2, EN 60309, GB/T 11918

Rated Current (In)

16A, 32A, 63A, 125A

Rated Voltage (Ue)

110V~130V, 220V~250V, 380V~415V (50/60Hz)

Pole Configuration

2P+E, 3P+E, 3P+N+E

Ingress Protection

IP44 (Splash-proof) / IP67 (Watertight)

Dielectric Strength

2500V AC (1 min)

Contact Resistance

< 5 mΩ

Mechanical Lifespan

> 5,000 insertion/withdrawal cycles

Operating Temperature

-40°C to +80°C



Product Types



Straight Plugs (IP44 / IP67)



Portable connection plugs featuring screwless or terminal-screw wiring chambers for flexible cord applications.

01

Surface-Mounted Sockets



Wall- or machine-mounted fixed receptacles with hinged protective covers and drilled conduit entry knockouts.

02

Panel-Mounted Sockets (Straight / Angled):

Compact flange receptacles designed for integration into electrical control cabinets and distribution boxes.

03

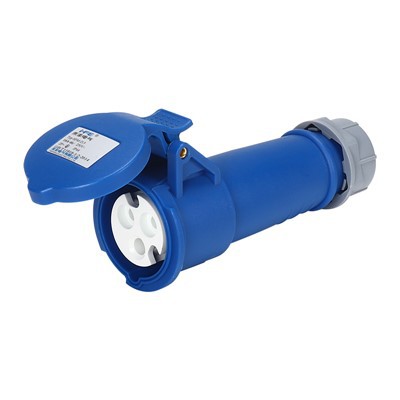

Connector Sockets (Inline)



Extension connectors matching portable plugs for extension cord assemblies on job sites.

04

Switched Interlocked Sockets



Mechanical interlock enclosures preventing plug insertion or removal while under load, ensuring operator safety.

05





Applications

Industrial Manufacturing: Power drops for CNC machinery, robotic welding cells, and overhead crane assemblies.


Construction & Infrastructure: Temporary site power distribution boards, tower crane feeds, and mobile generator hookups.


Marine & Outdoor Environments: Shore power connections, dockside refrigerated container (reefer) points, and wastewater treatment facilities.


Energy & Bulk Handling: Mining conveyor systems, oil rig auxiliary power units, and solar/wind farm maintenance skids.

125A IP67 单相工业插头





Customization & Selection

Color Coding

Standardized voltage identification (Yellow: 110V; Blue: 230V; Red: 400V; Black: 500V) aligned with IEC convention.

Housing Options

Standard PA66 polymer or chemical-resistant elastomer blends for corrosive chemical plants.



OEM/ODM Services

Custom logo embossing on housings, tailored packaging configurations, and specific terminal block layouts for volume orders.

Engineering Support

2D and 3D CAD drawings available upon request for electrical panel layout and design-in integration.



Quality Control


Raw Material Verification

Incoming raw PA66 resin undergoes melt flow index (MFI) and moisture content testing prior to injection molding.

Dimensional Inspection

Automated optical measuring tools verify pin pitch, sleeve inner diameters, and thread tolerances within ± 0.05 mm.

Functional Testing

100% routine testing on assembly lines covering dielectric withstand voltage, contact insertion force, and mechanical latch endurance.

Certifications

Manufactured under ISO 9001 quality management systems; products carry CE, CB, and RoHS compliance documentation.



Surface Mount Electrical Socket



Packaging & Shipping

Inner Packaging: Individual transparent PE bags paired with clear product label specifying amperage, poles, and voltage.


Master Carton: Heavy-duty 5-layer corrugated cardboard boxes reinforced with strapping bands to withstand international transit.


Lead Time & Logistics:
Standard catalog items: 7–15 days.
Custom production orders: 25–30 days.
Flexible shipping terms: FOB, CIF, and DDP via sea freight or air express for urgent samples.





Frequently Asked Questions





Q: What is the difference between IP44 and IP67 industrial plugs?

A: IP44 connectors resist splashing water and solid objects larger than 1.0 mm, making them suitable for indoor workshops or sheltered outdoor setups. IP67 connectors feature threaded locking rings and heavy rubber gaskets, allowing temporary immersion in water up to 1 meter and complete dust-tight sealing for harsh outdoor or marine environments.

Q: Can 63A and 125A industrial plugs be wired using standard screwdrivers?

A: No. 16A and 32A variants typically use standard terminal screws or screwless spring clamps. Higher amperage units (63A and 125A) utilize heavy-duty hexagonal socket screw terminals or pilot-pin control contacts requiring calibrated torque tools to ensure secure, low-resistance conductor clamping.

Q: Are your industrial plugs compatible with other major IEC 60309 brands?

A: Yes. All products adhere strictly to dimensional and mechanical interchangeability requirements defined in IEC 60309-1 and IEC 60309-2, ensuring direct mating compatibility with standard receptacles from international manufacturers.

Q: What is your minimum order quantity (MOQ) for custom logo printing?

A: Standard catalog items have flexible MOQ starting from 100 pieces per specification. Custom logo molding or specialized housing colors typically require a minimum order of 1,000 pieces per model to cover tooling setup.

Q: What documentation is provided for electrical compliance audits?

A: Each shipment includes a factory test report. Complete technical files, including CE declarations of conformity, RoHS test reports, and third-party CB certificates, are available upon request for technical evaluation.

Zhejiang Hefeng Electric Co., Ltd. is one of the most professional industrial plug and socket manufacturers and suppliers in China, featured by quality products and low price. Please rest assured to buy durable industrial plug and socket made in China here from our factory. Also, OEM service is available.
