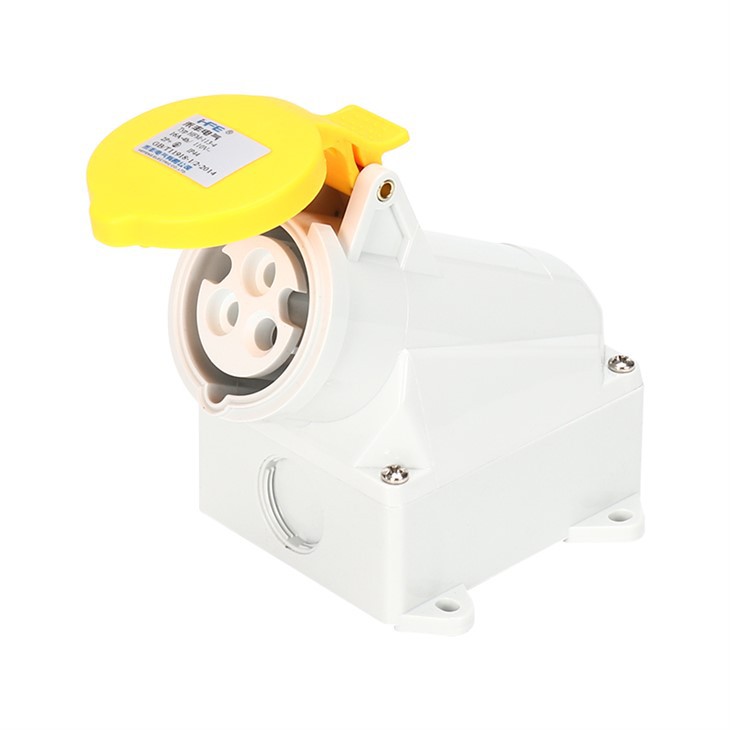

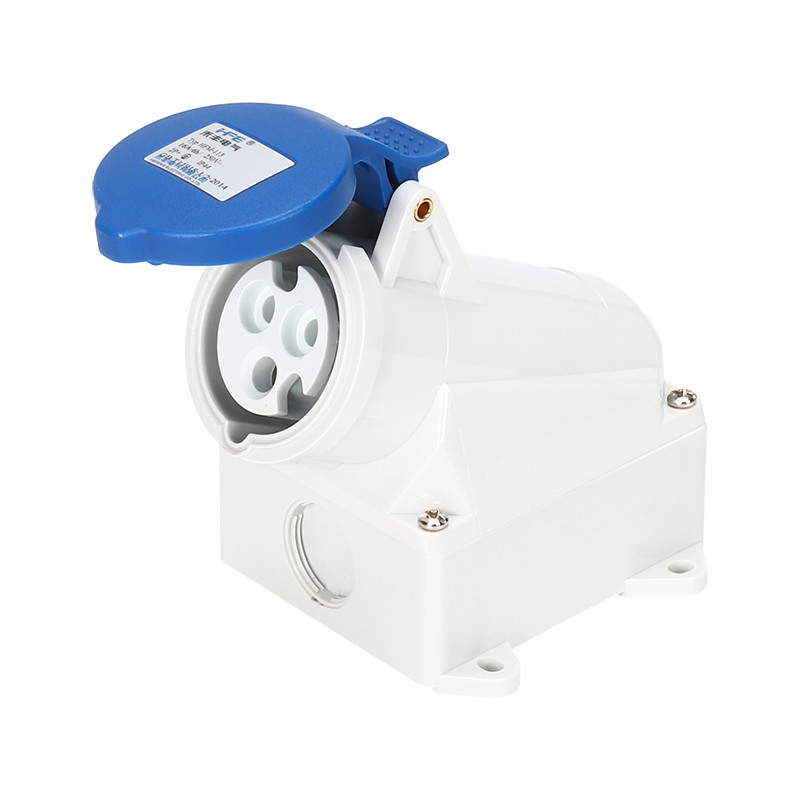

IEC 60309 Industrial Sockets
Common current specifications for industrial plugs and sockets:
1. According to IEC60309 standard (International Electrotechnical Organization Standard) and China (GB standard), it is divided into 16A, 32A, 63A, 125A according to current.
2. According to the US UI standard current specifications are 20A, 30A, 60A, 100A.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of iec 60309 industrial sockets in China. With abundant experience, we warmly welcome you to buy high-grade iec 60309 industrial sockets for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Common current specifications for industrial plugs and sockets:
1. According to IEC60309 standard (International Electrotechnical Organization Standard) and China (GB standard), it is divided into 16A, 32A, 63A, 125A according to current.
2. According to the US UI standard current specifications are 20A, 30A, 60A, 100A.
3. Compatibility between various specifications
- IEC and GB standard 16A products are compatible with US UL standard 20A industrial plug and socket products
- IEC and GB standard 32A products are compatible with American UL standard 30A industrial plug and socket products
- IEC and GB standard 63A products are compatible with American UL standard 60A industrial plug and socket products
- IEC and GB standard 125A products are compatible with US UL standard 100A industrial plug and socket products
Technical Parameter
|
Product name |
wall mount socket |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HFM-113/HFM-113-4 |
|
4 pin (3P+E) |
HFM-114/HFM-114-4 |
||
|
5 pin (3P+N+E) |
HFM-115/HFM-115-4 |
||
|
32A |
3 pin (2P+E) |
HFM-123/HFM-123-4 |
|
|
4 pin (3P+E) |
HFM-124/HFM-124-4 |
||
|
5 pin (3P+N+E) |
HFM-125/HFM-125-4 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||
Dimensions
|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
95 |
95 |
95 |
122 |
122 |
122 |
|
b |
88 |
88 |
88 |
99 |
99 |
99 |
|
C |
128 |
133 |
138 |
151 |
151 |
159 |
|
d |
64 |
64 |
64 |
90 |
90 |
90 |
|
e |
78 |
78 |
78 |
80 |
80 |
80 |
|
e1 |
102 |
102 |
102 |
113 |
113 |
113 |
|
f |
15.5 |
15.5 |
15.5 |
16 |
16 |
16 |
|
g |
5.2 |
5.2 |
5.2 |
5.2 |
5.2 |
5.2 |
|
h |
130 |
130 |
130 |
159 |
159 |
159 |
|
i |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
m |
M25 |
M25 |
M25 |
M32 |
M32 |
M32 |
|
M* |
1个M25 The stopper can be cut off. |
1个M32 The stopper can be cut off. |
||||
|
Cable cross-section are(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
