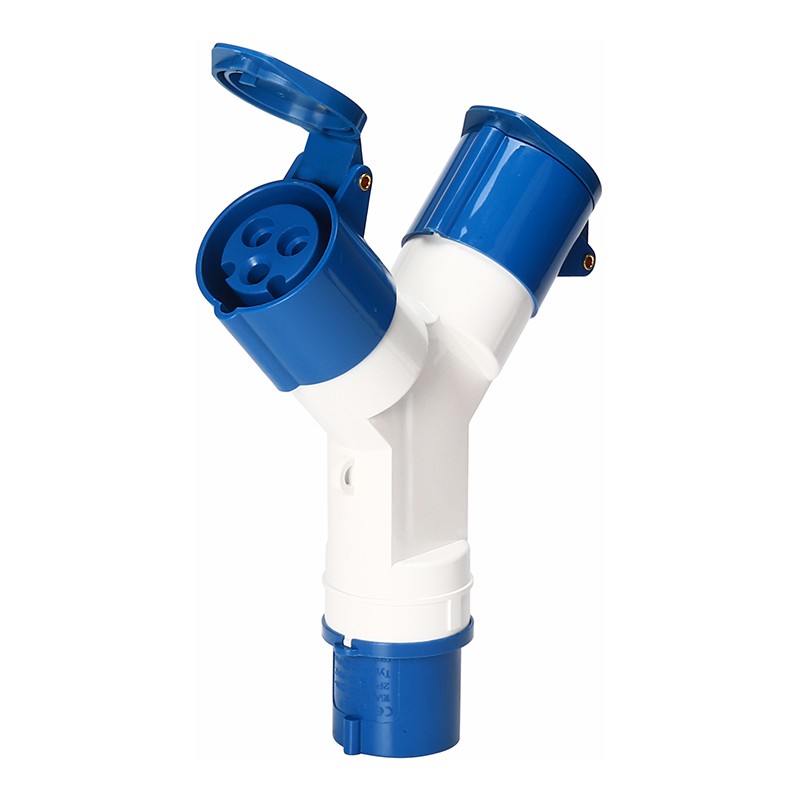

Industrial Multiple Socket
This Waterproof industrial multiple socket is engineered to provide secure and uninterrupted power connections, making it an indispensable component for various outdoor applications.With the capacity to handle high currents and voltages, this Waterproof industrial multiple socket is built for demanding industrial applications.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of industrial multiple socket in China. With abundant experience, we warmly welcome you to buy high-grade industrial multiple socket for sale here from our factory. All OEM products are with high quality and low price.
Product Details
This Waterproof industrial multiple socket is engineered to provide secure and uninterrupted power connections, making it an indispensable component for various outdoor applications.With the capacity to handle high currents and voltages, this Waterproof industrial multiple socket is built for demanding industrial applications. It reliably delivers power to heavy machinery, equipment, and tools, ensuring efficient operations even in challenging outdoor settings.
The Standard Waterproof industrial multiple socket are widely used in the power connection of airports, docks and outdoor construction sites, and can also be used in many electromechanical equipment, refrigeration products, kitchen equipment, stage lighting, etc.The outer shell of the Industrial Plug is made of nylon 66 material, which has corrosion resistance, high strength and high flame retardant properties. The insert part is made of copper 3602 material, which has high elasticity and continuity. These products are ideal for power connections in harsh environments.
Features
(1) The housing of the industrial multiple socket is represented by different colors and different rated voltages and frequencies.
(2) The position, number of stages and diameter of the grounding contacts of different specifications are different. Only the same specifications can be plugged in to prevent mis-insertion.
(3) The shell is made of high-quality engineering plastics, which has high strength, impact resistance and is not afraid of pedaling. It can be used indoors or outdoors. Suitable for alpine and tropical areas.
(4) High degree of protection, the high performance industrial plug can be used for dust, water, corrosion and other occasions.
(5) The industrial plug complies with the IEC309 standard and is internationally applicable.
Technical Parameter
|
Product name |
industrial multiple socket |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HF-Y1013/ HF-Y1013-4 |
|
4 pin (3P+E) |
HF-Y1014/ HF-Y1014-4 |
||
|
5 pin (3P+N+E) |
HF-Y1015/ HF-Y1015-4 |
||
|
32A |
3 pin (2P+E) |
HF-Y1023/ HF-Y1023-4 |
|
|
4 pin (3P+E) |
HF-Y1024/ HF-Y1024-4 |
||
|
5 pin (3P+N+E) |
HF-Y1025/ HF-Y1025-4 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||

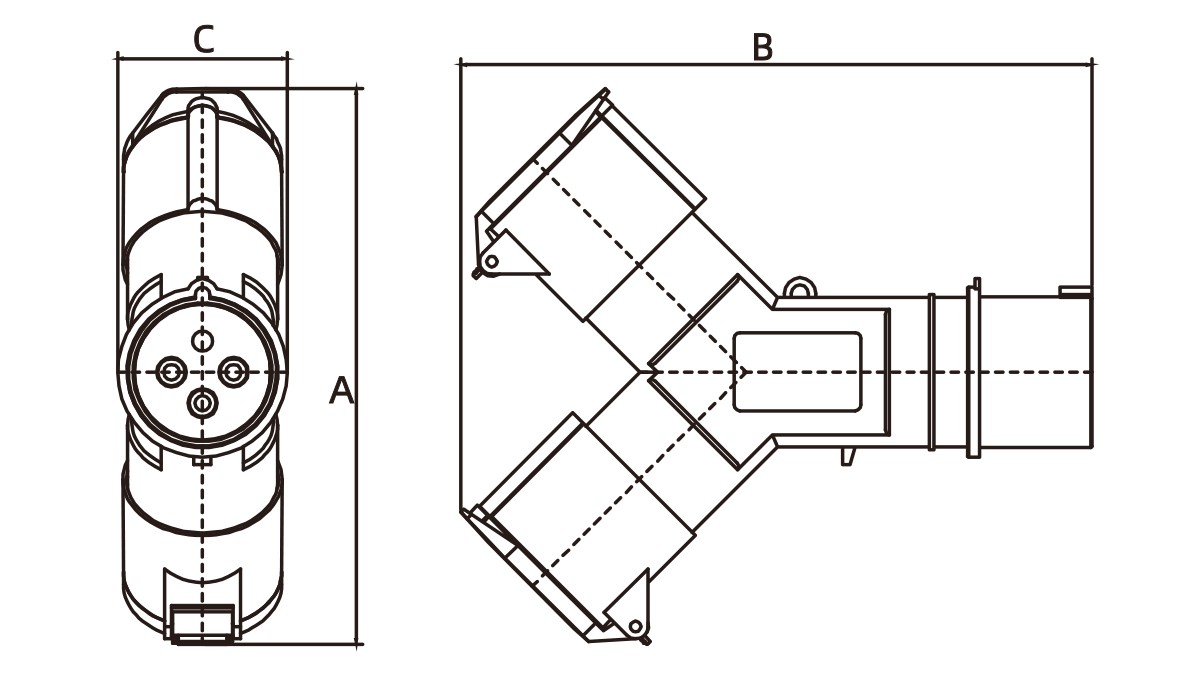

Dimensions
|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
182 |
188 |
213 |
225 |
225 |
273 |
|
b |
211 |
214 |
239 |
255 |
255 |
301 |
|
c |
52 |
54 |
64 |
65 |
652.5~6 |
71 |
|
Cable cross-section area(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
