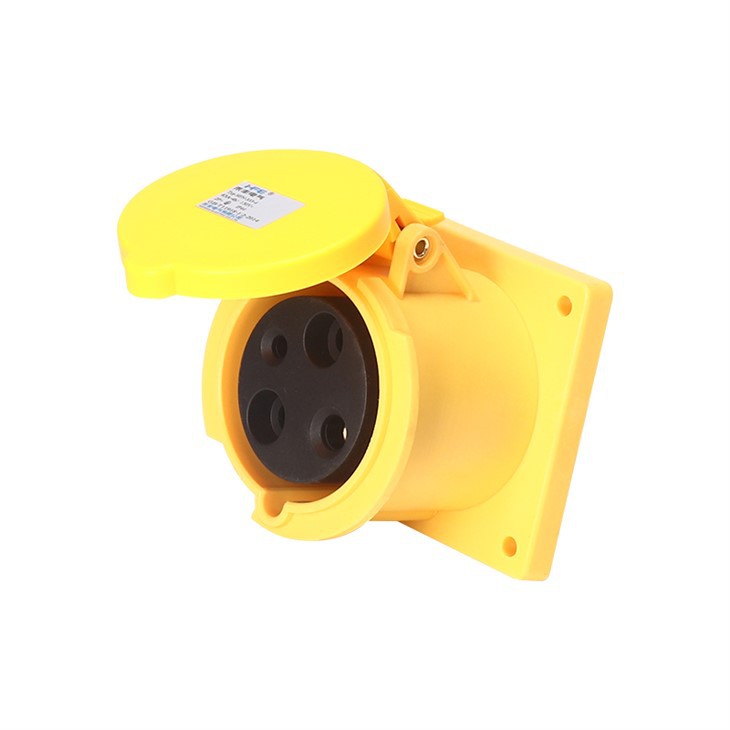

Power Industrial Socket
Power industrial socket It is typically made of durable materials such as high-quality plastic and metal. The outer casing is usually constructed from robust plastic that provides insulation and protection against electrical shocks and environmental factors. The internal components are made of metal, which ensures reliable electrical conductivity and durability.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of power industrial socket in China. With abundant experience, we warmly welcome you to buy high-grade power industrial socket for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Power industrial socket It is typically made of durable materials such as high-quality plastic and metal. The outer casing is usually constructed from robust plastic that provides insulation and protection against electrical shocks and environmental factors. The internal components are made of metal, which ensures reliable electrical conductivity and durability. The plug is designed with a sturdy and ergonomic shape, making it easy to handle and insert into industrial sockets. It often features a large grip area for easy insertion and removal, even when wearing gloves or in difficult working conditions. The design also takes into account safety features such as insulation barriers and locking mechanisms to prevent accidental disconnection.
Common current specifications for industrial plugs and sockets:
1. According to IEC60309 standard (International Electrotechnical Organization Standard) and China (GB standard), it is divided into 16A, 32A, 63A, 125A according to current.
2. According to the US UI standard current specifications are 20A, 30A, 60A, 100A.
3. Compatibility between various specifications
IEC and GB standard 16A products are compatible with US UL standard 20A industrial plug and socket products
IEC and GB standard 32A products are compatible with American UL standard 30A industrial plug and socket products
IEC and GB standard 63A products are compatible with American UL standard 60A industrial plug and socket products
IEC and GB standard 125A products are compatible with US UL standard 100A industrial plug and socket products
Technical Parameter
|
Product name |
panle mount socket |
||
|
Current |
63A/125A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HFN-333/HFN-333-4 |
|
4 pin (3P+E) |
HFN-334/HFN-334-4 |
||
|
5 pin (3P+N+E) |
HFN-335/HFN-335-4 |
||
|
32A |
3 pin (2P+E) |
HFN-343/HFN-343-4 |
|
|
4 pin (3P+E) |
HFN-344/HFN-344-4 |
||
|
5 pin (3P+N+E) |
HFN-345/HFN-345-4 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||

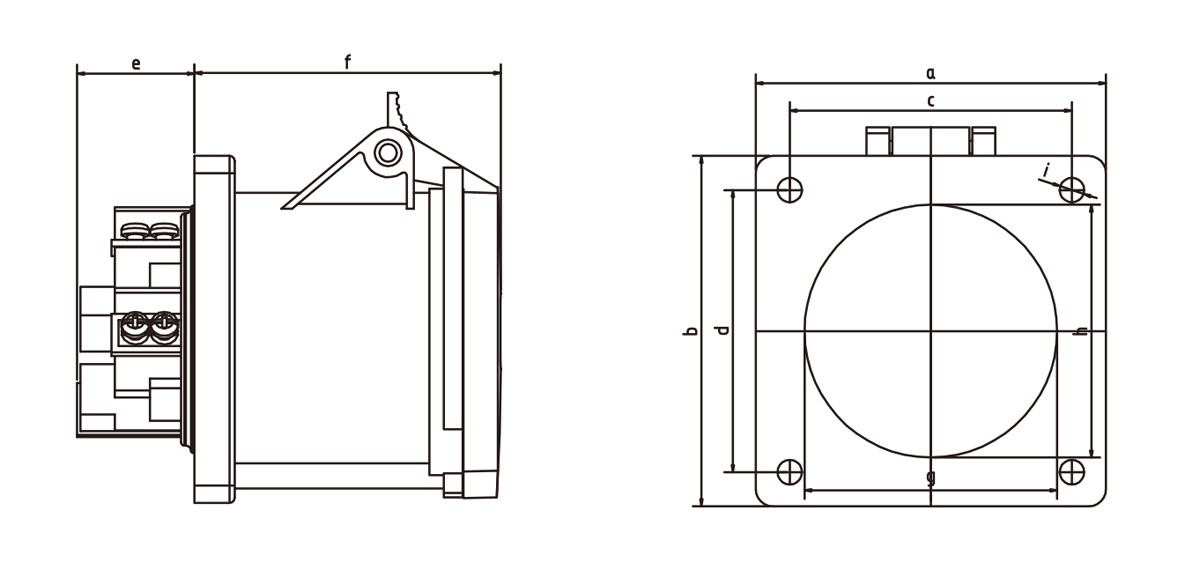

Dimensions
|
Current |
63A |
125A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
100 |
100 |
100 |
120 |
120 |
120 |
|
b |
100 |
100 |
100 |
120 |
120 |
120 |
|
C |
80 |
80 |
80 |
101 |
101 |
101 |
|
d |
80 |
80 |
80 |
101 |
101 |
101 |
|
e |
35 |
35 |
35 |
44 |
44 |
44 |
|
f |
98 |
98 |
98 |
106 |
106 |
106 |
|
g |
83 |
83 |
83 |
90 |
90 |
90 |
|
h |
83 |
83 |
83 |
90 |
90 |
90 |
|
h |
83 |
83 |
83 |
90 |
90 |
90 |
|
Cable cross-section area(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
