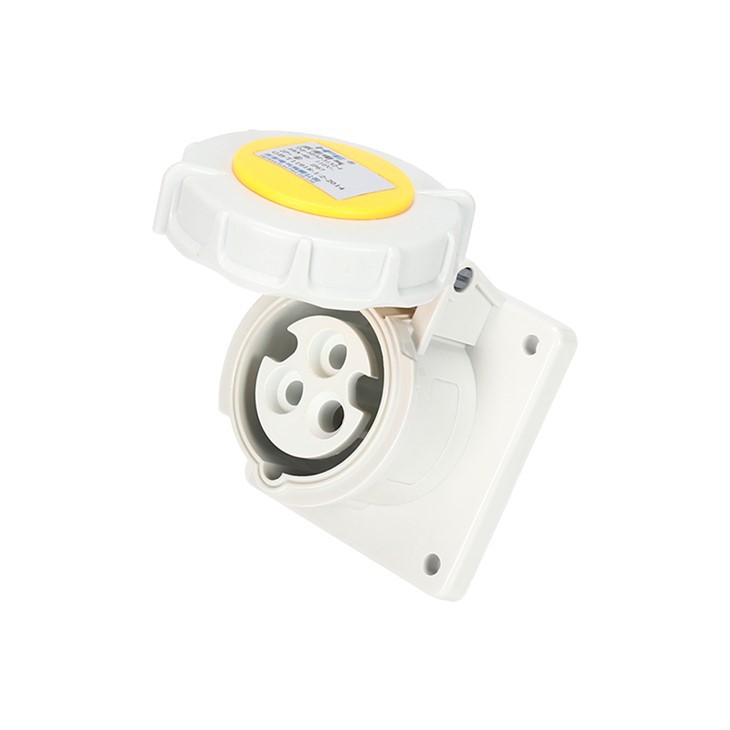

16A Surface Mount Socket
(1) the shell represents different rated voltage and frequency in different colors.
(2) The position, series and diameter of grounding contacts are different for different specifications of products. Only the same specifications can be connected to prevent misinsertion.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 16a surface mount socket in China. With abundant experience, we warmly welcome you to buy high-grade 16a surface mount socket for sale here from our factory. All OEM products are with high quality and low price.
Characteristics
1)Color-Coded Design: Different housing colors indicate different rated voltages and frequencies, making product identification quick and easy.
2)Safe and Reliable Connection: The position, configuration, and diameter of the grounding contacts vary according to product specifications. Only compatible plugs and sockets can be connected, helping prevent incorrect insertion.
3)Durable PA66 Housing: Made of high-strength Nylon PA66, the housing offers excellent impact resistance and durability. It is designed for indoor and outdoor use and is suitable for a wide range of climatic conditions, from cold regions to tropical environments.
4)High Protection Performance: The industrial wall socket provides reliable protection against dust, water, and corrosion when the appropriate protection rating and materials are selected, making it suitable for demanding industrial environments.
Technical Parameter
|
Product name |
panle mount socket |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Item code |
16A |
3 pin (2P+E) |
HFM-3132/HFM-3132-4 |
|
4 pin (3P+E) |
HFM-3142 |
||
|
5 pin (3P+N+E) |
HFM-3152 |
||
|
32A |
3 pin (2P+E) |
HFM-3232/HFM-3232-4 |
|
|
4 pin (3P+E) |
HFM-3242 |
||
|
5 pin (3P+N+E) |
HFM-3252 |
||
|
Protection degree |
IP67 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||
Dimensions

|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a*b |
75 |
75 |
75 |
75 |
75 |
75 |
|
c*d |
60 |
60 |
60 |
60 |
60 |
60 |
|
e |
33 |
30 |
34 |
42 |
42 |
42 |
|
f |
58 |
58 |
60 |
69 |
69 |
70 |
|
g*h |
46 |
54 |
57 |
60 |
60 |
65 |
|
Cable cross-section area(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
FAQ

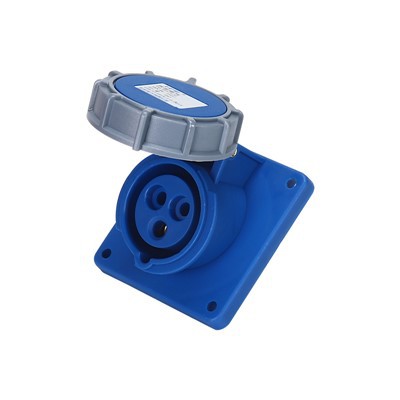

Hot Tags: 16a surface mount socket, China 16a surface mount socket manufacturers, factory, 3 pin plug socket box, 32amp 5 pin commando socket, blue electrical plug, Concealed Industrial Power Outlet, Concealed Power Socket, Waterproof Outdoor Power Socket
