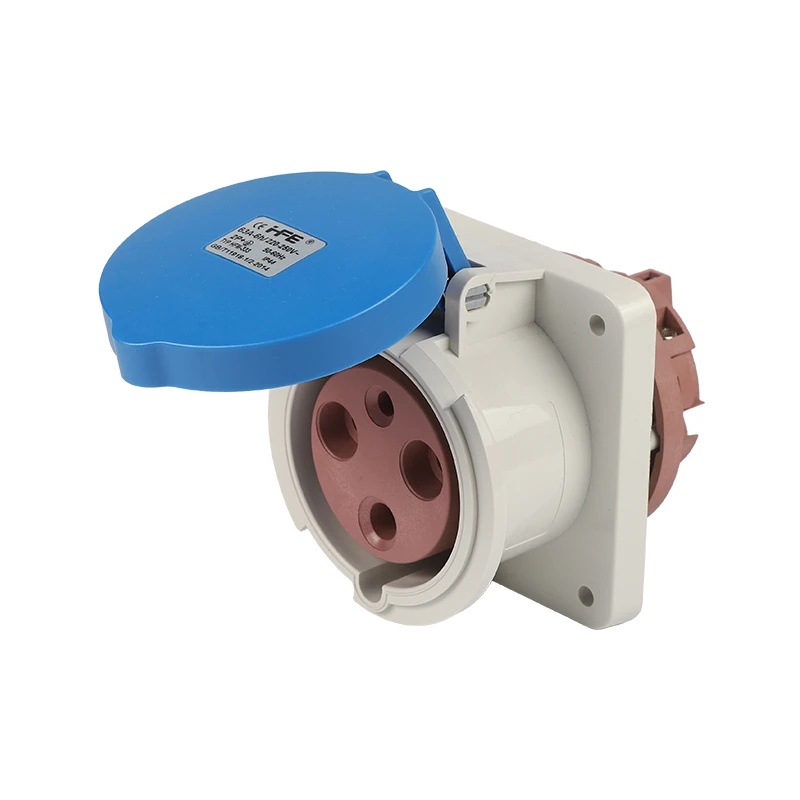

32A Surface Mount Socket
The surface mounted socket outlet is used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 32a surface mount socket in China. With abundant experience, we warmly welcome you to buy high-grade 32a surface mount socket for sale here from our factory. All OEM products are with high quality and low price.
Product Details
The surface mounted socket outlet is used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect.
Feature
The surface mounted socket outlet are dustproof, waterproof, splash proof, moisture proof, anti-corrosion, anti-missing, anti-shedding, anti-flame retardant, high temperature resistance, anti-aging, high toughness, good impact resistance, high smoothness and high current soft contact.
The surface mounted socket outlet is convenient and stable to connect, and recognition by domestic and foreign customers. Products are widely used in iron and steel smelting, petrochemical, electric power, electronics, construction sites, airports, mining, water supply and drainage treatment plants, plastic machinery, IT, military, railway, aerospace, medical, food, automated production equipment, packaging equipment, tunnels Engineering, generator sets, power distribution cabinets, outdoor sports field transmission and distribution equipment, outdoor display, stage lighting and audio, as well as ports, terminals, shopping malls, hotels and other enterprises, providing security for all types of electrical equipment in a dedicated environment.
It is a new generation of ideal industrial connector. Reliable products and excellent service will bring you safer power protection.
Features of Waterproof Low Voltage Plugs and Sockets
1.Undergone the tests of extreme conditions and got relevant certificates complying with the international standard.
2.Certificates:CCC,CE
3.Application:widely applied in the electrical Field,particularly in the steel,Chemical,electrical,absenteeism,ports,airports,oil exploration,foods,subway etc.
4.Waterproof and dustproof,impact-resistance,anti-aging advantages.
5.Easy installation.
Technical Parameter
|
Product name |
panle mount socket |
||
|
Current |
63A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Item code |
63A |
3 pin (2P+E) |
HFM-333/HFM-333-4 |
|
4 pin (3P+E) |
HFM-334 |
||
|
5 pin (3P+N+E) |
HFM-335 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||
Dimensions
|
Current |
63A |
||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (2P+E) |
|
a |
132 |
132 |
132 |
|
b |
95 |
95 |
95 |
|
C |
55 |
55 |
55 |
|
d |
112 |
112 |
112 |
|
e |
5 |
5 |
5 |
|
f |
107 |
107 |
107 |
|
g |
85 |
85 |
85 |
|
h |
100 |
100 |
100 |
|
i |
77 |
70 |
70 |
|
Cable cross-section area(m m²) |
10~16 |
||
※ Customization is available for special voltages, grounding locations, colors, etc.
