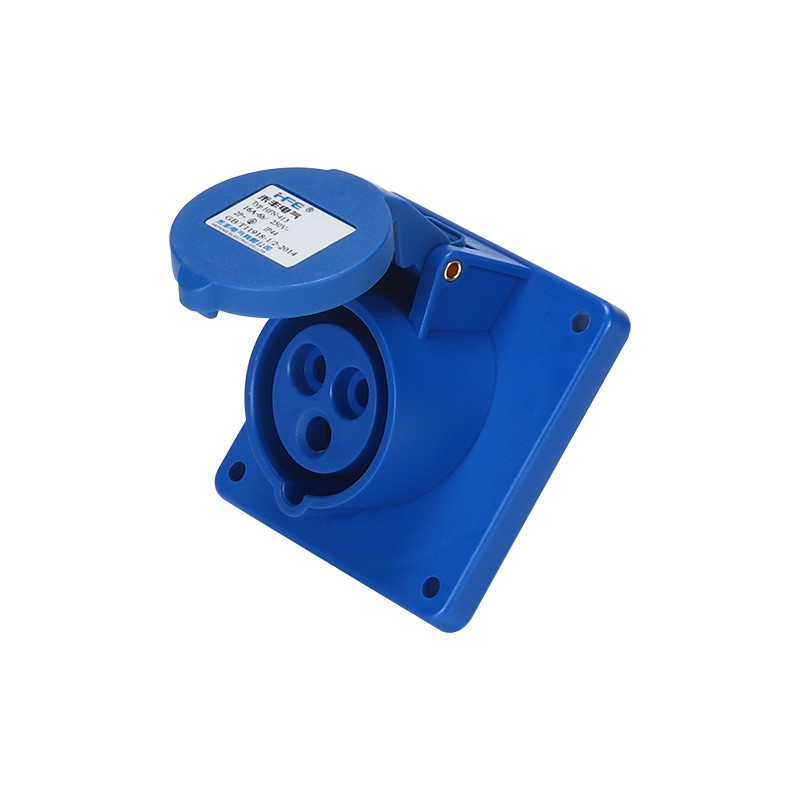

Waterproof Outdoor Power Socket

HFN-413/HFN-413-4
Waterproof power ocket Engineered to meet the rigorous demands of industrial environments, this socket boasts unparalleled durability and performance.Crafted from robust materials, this socket is designed to withstand heavy usage and harsh conditions.Featuring ergonomic elements for easy plug insertion and extraction, it minimizes the risk of electrical accidents.

Send Inquiry

Product Introduction

Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of waterproof outdoor power socket in China. With abundant experience, we warmly welcome you to buy high-grade waterproof outdoor power socket for sale here from our factory. All OEM products are with high quality and low price.

Product Details

Waterproof power ocket Engineered to meet the rigorous demands of industrial environments, this socket boasts unparalleled durability and performance.Crafted from robust materials, this socket is designed to withstand heavy usage and harsh conditions.Featuring ergonomic elements for easy plug insertion and extraction, it minimizes the risk of electrical accidents.

Safety Features:

Safety is a key consideration in the design of the Industrial Plug. It includes features such as a locking mechanism or secure clamping system that prevents accidental disconnection and ensures a stable connection during operation.

Comprehensive Safety Features:

Waterproof power ocket precedence with this socket. Equipped with safeguards against overloading, short circuits, and voltage fluctuations, it secures both equipment and users. Its ergonomic design minimizes electrical accidents, promoting a secure environment and operational safety.

Technical Parameter

Product name	panle mount socket
Current	16A/32A
Earth contact position	Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available
Ltem code	16A	3 pin (2P+E)	HFN-413/HFN-413-4
		4 pin (3P+E)	HFN-414/HFN-414-4
		5 pin (3P+N+E)	HFN-415/HFN-415-4
	32A	3 pin (2P+E)	HFN-423/HFN-423-4
		4 pin (3P+E)	HFN-424/HFN-424-4
		5 pin (3P+N+E)	HFN-425/HFN-425-4
Protection degree	IP44
Voltage	110-130V~,220-250V~,380-415~,415V~
Standard	EN/ IEC 60309-1/2
Certification	CE, ROHS, TUV, CB

Dimensions

product-1200-674

Current	16A			32A
number of poles	3 pin (2P+E)	4 pin (3P+E)	5 pin (3P+N+E)	3 pin (2P+E)	4 pin (3P+E)	5 pin (3P+N+E)
a	85	85	85	85	85	85
b	85	85	85	85	85	85
C	70	70	70	70	70	70
d	70	70	70	70	70	70
e	33	35	37	52	52	44
f	60	65	61	67	67	75
g	53	60	67	67	67	71
h	64	68	73	79	79	79
i	5.5	5.5	5.5	5.5	5.5	5.5
Cable cross-section area(m m²)	1~2.5			2.5~6

※ Customization is available for special voltages, grounding locations, colors, etc.

FAQ

Q: What is the maximum current rating for the Industrial Plug ?

A: It is designed to handle electrical currents of up to 125 amps. This high current rating makes it suitable for applications that require substantial electrical power, such as large machinery and industrial systems.

Q: What materials are used in the construction of the Industrial Plug IP67?

A: It is constructed from high-quality materials like thermoplastic and industrial-grade nylon. These materials provide exceptional durability and resistance to wear and tear, ensuring reliable performance in demanding conditions.

Q: How does the Industrial Plug 32A ensure efficient power transfer?

A: It is engineered to manage high electrical currents effectively, ensuring efficient power transfer without overheating or causing electrical faults. This design helps maintain stable and reliable operation of connected equipment.
