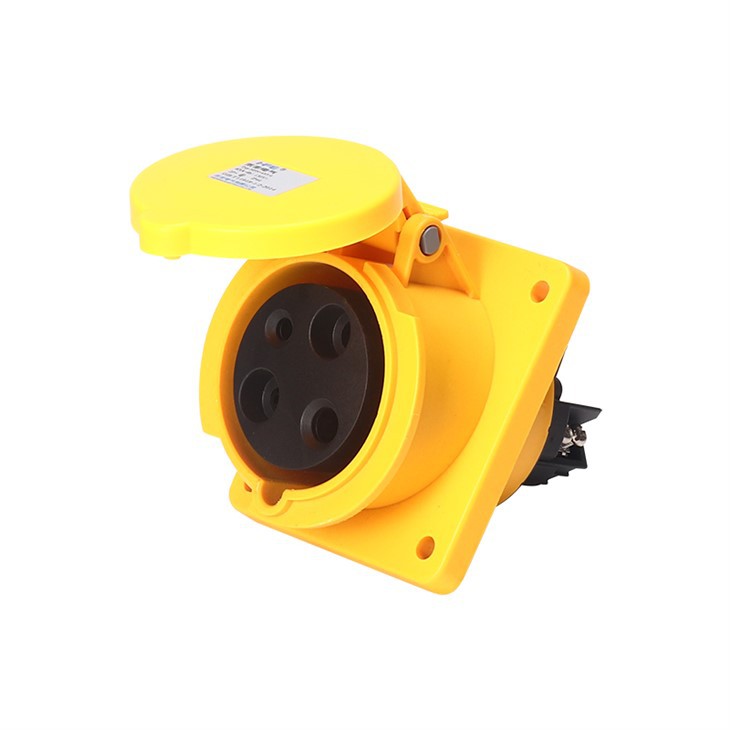

IP44 Flanged Socket
Most flanged socket are rated IP44, IP67, or higher, depending on the model, providing a strong barrier against dust and water ingress. The IP44 rating offers protection against splashes, while the IP67-rated models are completely dust-tight and can withstand temporary submersion in water.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of ip44 flanged socket in China. With abundant experience, we warmly welcome you to buy high-grade ip44 flanged socket for sale here from our factory. All OEM products are with high quality and low price.
Product Details
IP Rating and Environmental Protection
Most flanged socket are rated IP44, IP67, or higher, depending on the model, providing a strong barrier against dust and water ingress. The IP44 rating offers protection against splashes, while the IP67-rated models are completely dust-tight and can withstand temporary submersion in water. This makes the plug highly suitable for outdoor use in construction sites, shipyards, or locations with frequent washdowns.
Flangled socket Products Features:
The flangled socket are typically crafted from durable thermoplastic materials or high-strength polyamide (Nylon). These materials provide excellent resistance to mechanical stress, thermal conditions, and chemical exposure, ensuring longevity and reliability. The internal contacts are commonly made from brass or nickel-plated copper, offering superior electrical conductivity and resistance to corrosion.
Current and Voltage Ratings:
Designed to handle a maximum current of 125 amps, these plugs and sockets are available in various voltage ratings, depending on the specific application. This high current capability makes them suitable for powering large machinery, industrial equipment, and high-demand applications where stable and efficient power supply is crucial.
Technical Parameter
|
Product name |
panle mount socket |
||
|
Current |
63A/125A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HFN-433/HFN-433-4 |
|
4 pin (3P+E) |
HFN-434/HFN-434-4 |
||
|
5 pin (3P+N+E) |
HFN-435/HFN-435-4 |
||
|
32A |
3 pin (2P+E) |
HFN-443/HFN-443-4 |
|
|
4 pin (3P+E) |
HFN-444/HFN-444-4 |
||
|
5 pin (3P+N+E) |
HFN-445/HFN-445-4 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||
Dimensions
|
Current |
63A |
125A |
||||
|
number of poles |
3 |
4 |
5 |
3 |
4 |
5 |
|
a |
101 |
101 |
101 |
120 |
120 |
120 |
|
b |
113 |
113 |
113 |
131 |
131 |
131 |
|
c |
80 |
80 |
80 |
100 |
100 |
100 |
|
d |
89 |
89 |
89 |
108 |
108 |
108 |
|
e |
64 |
64 |
64 |
93 |
93 |
93 |
|
f |
83 |
83 |
83 |
82 |
82 |
82 |
|
g |
82 |
82 |
82 |
93 |
93 |
93 |
|
h |
92 |
92 |
92 |
104 |
104 |
104 |
|
i |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
7.5 |
|
Cable cross-section area(m m²) |
6~16 |
16~50 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
