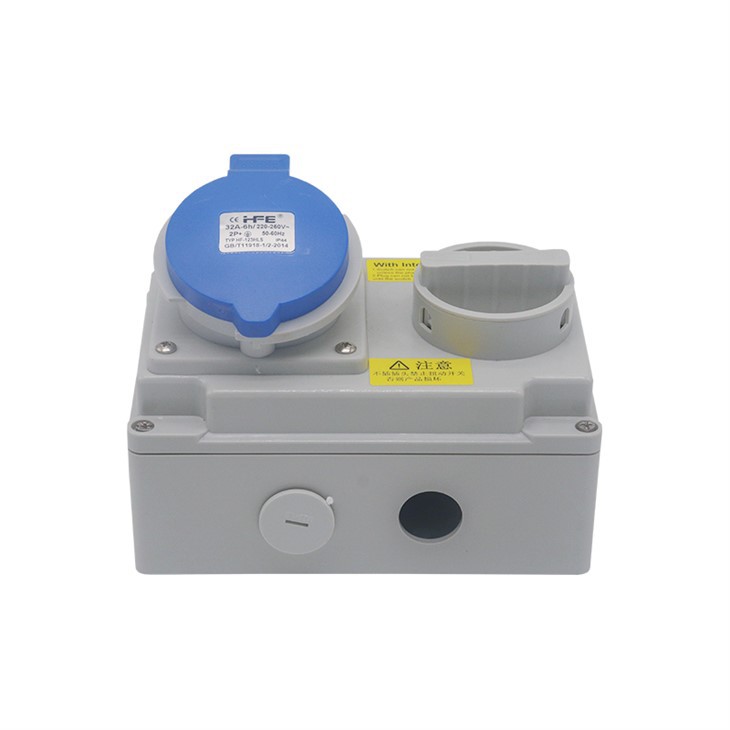

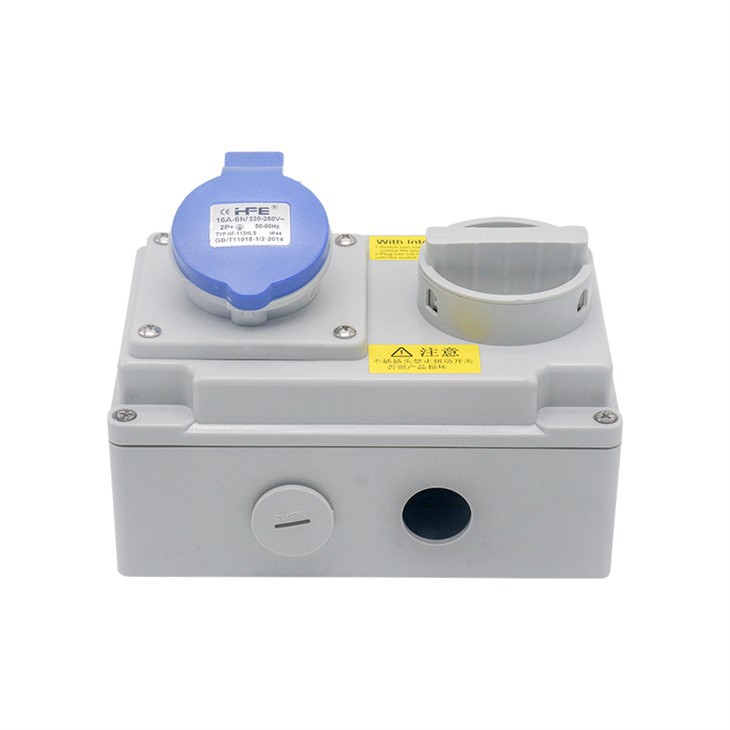

Interlocked Socket Outlet
Interlocked socket outlet Scope of application: are suitable for various stage lighting equipment, small generators, lighting equipment, inverters and other power supply equipment.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of interlocked socket outlet in China. With abundant experience, we warmly welcome you to buy high-grade interlocked socket outlet for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Interlocked socket outlet is a safe and reliable industrial power connection solution designed for stage lighting systems, small generators, lighting equipment, inverters, and other power supply applications. Featuring an integrated socket and switch interlocking mechanism, it helps prevent accidental connection and disconnection under load, improving electrical safety and operational reliability.
Designed for professional power distribution, this industrial socket outlet provides stable power transmission for entertainment events, construction sites, workshops, temporary power systems, and outdoor applications. Its compact structure, durable housing, and user-friendly design make installation and maintenance more convenient for electricians and end users.
The switched interlocked socket is available in different current ratings and configurations to meet various electrical requirements. With excellent protection performance, long service life, and reliable safety features, it is an ideal choice for stage lighting companies, generator rental suppliers, electrical contractors, and industrial equipment manufacturers seeking a dependable power supply solution.
Key Features
Enhanced Safety Protection: Mechanical interlock system prevents load connection/disconnection, reducing electrical hazards.
Durable Industrial Design: Made from high-quality, impact-resistant materials suitable for harsh environments.
Weatherproof & Dustproof: High protection rating (e.g., IP44 / IP67) ensures reliable performance in outdoor and industrial applications.
Easy Operation: Ergonomic design with clear ON/OFF positions for convenient and safe handling.
Wide Compatibility: Compatible with various industrial plugs, meeting international standards.
Technical Parameter
|
Product Name |
weatherproof switched interlocked socket |
||
|
Earth contact position |
Standard:6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Item code |
16A |
3 pin (2P+E) |
HFL-1132/ HFL-1132-4 |
|
4 pin (3P+E) |
HFL-1142 |
||
|
5 pin (3P+N+E) |
HFL-1152 |
||
|
32A |
3 pin (2P+E) |
HFL-1232/ HFL-1232-4 |
|
|
4 pin (3P+E) |
HFL-1242 |
||
|
5 pin (3P+N+E) |
HFL-1252 |
||
|
Specification |
1) Rated current:16A/32A/63A |
||
|
2) Rated voltage: 110-130V～/220-250V～/380-415V～ |
|||
|
3) No. of poles:2P+E/3P+E/3P+N+E |
|||
|
Protection Degree |
IP44/IP67 |
||
|
Standards |
EN/IEC 60309-1/2 |
||
|
Certificates |
CE,ROHS,CQC |
||
|
Housing material |
Plastic |
||
|
Conductor material |
Copper |
||
Dimensions
|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
225 |
225 |
225 |
225 |
225 |
225 |
|
b |
119 |
119 |
119 |
119 |
119 |
119 |
|
c |
144 |
146 |
147 |
152 |
152 |
153 |
|
d |
208 |
208 |
208 |
208 |
208 |
208 |
|
e |
101 |
101 |
101 |
101 |
101 |
101 |
|
f |
6.3 |
6.3 |
6.3 |
65 |
65 |
65 |
|
g |
13.5 |
13.5 |
13.5 |
13.5 |
13.5 |
13.5 |
|
h |
252 |
255 |
259 |
268 |
268 |
274 |
|
M |
2*25 |
2*25 |
2*25 |
2*25 |
2*25 |
2*25 |
|
M* |
25/32 |
25/32 |
25/32 |
25/32 |
25/32 |
25/32 |
|
Cable cross-section area(m m²) |
1~2.5 |
4~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
