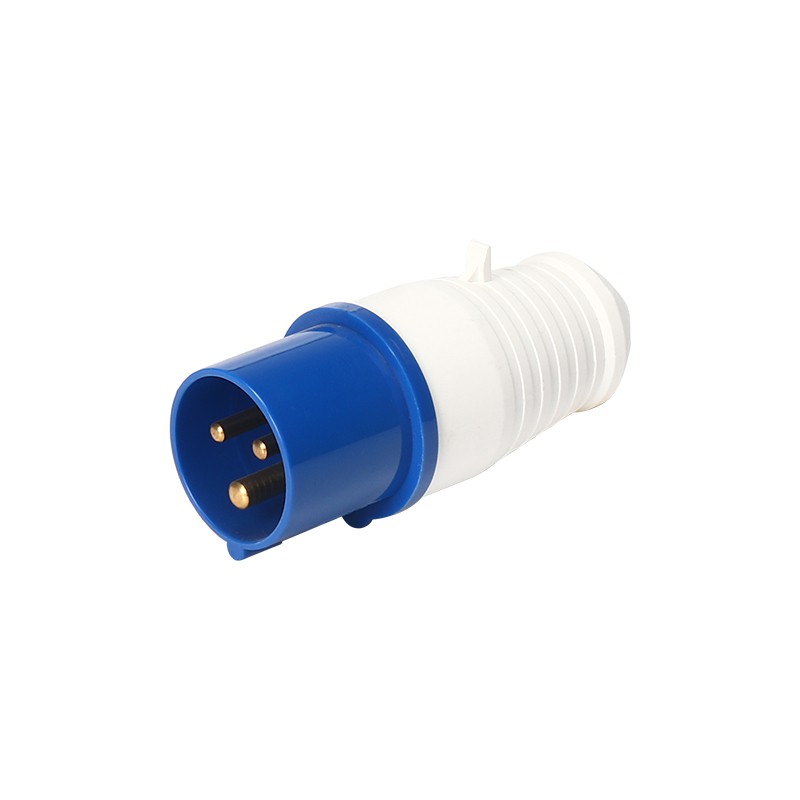

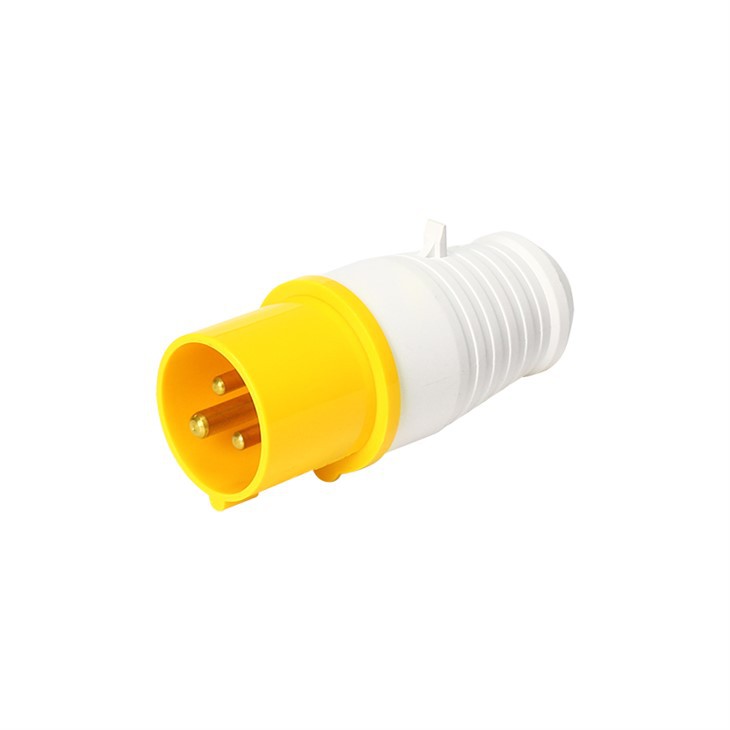

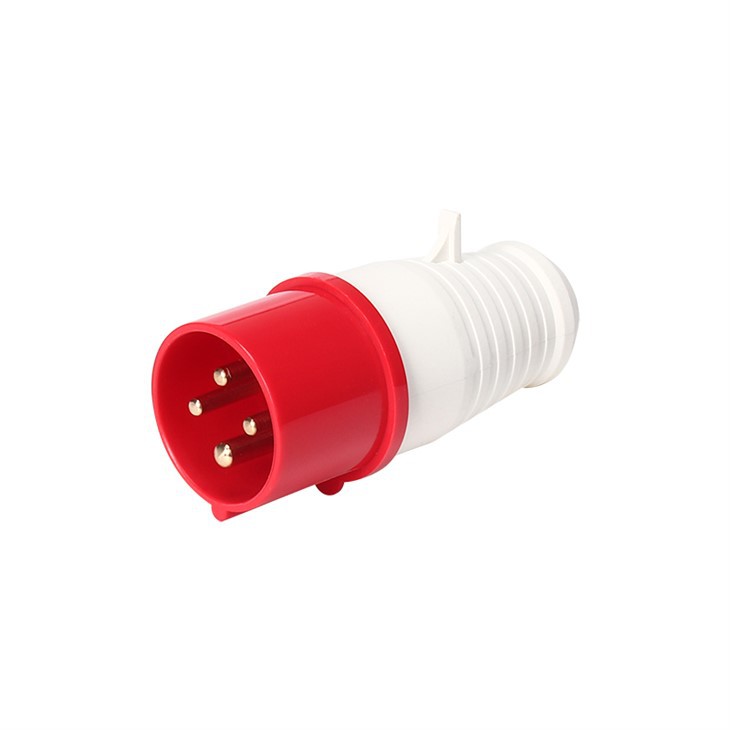

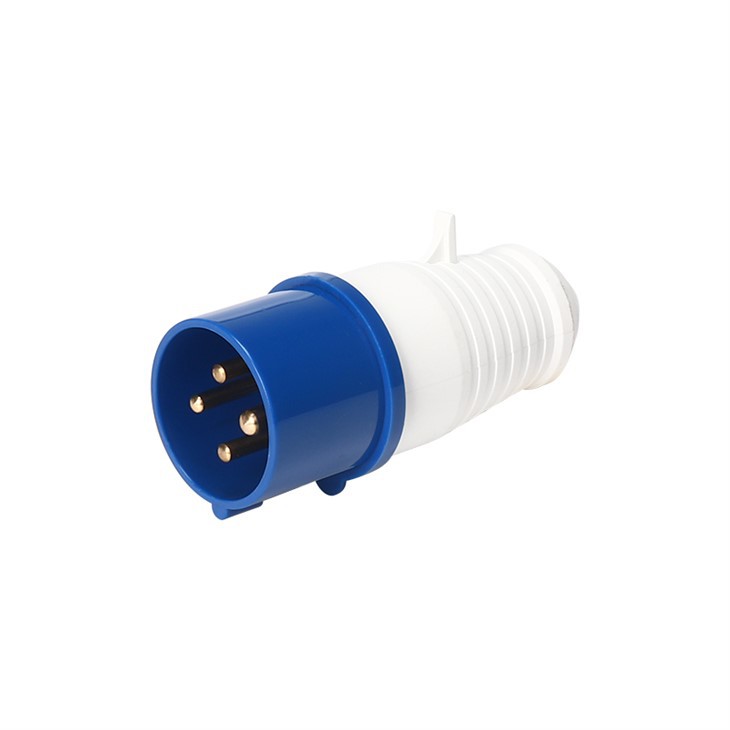

16A Industrial Plugs
Safety is a key consideration in the design of the Industrial Plug. It includes features such as a locking mechanism or secure clamping system that prevents accidental disconnection and ensures a stable connection during operation. Additionally, the plug is designed to prevent the ingress of dust and water, further enhancing safety and reducing the risk of electrical faults.
Zhejiang Hefeng Electric Co., Ltd. is one of the most reliable manufacturers and suppliers of 16a industrial plugs in China. With abundant experience, we warmly welcome you to buy high-grade 16a industrial plugs for sale here from our factory. All OEM products are with high quality and low price.
Product Details
Safety is a key consideration in the design of the Industrial Plug. It includes features such as a locking mechanism or secure clamping system that prevents accidental disconnection and ensures a stable connection during operation. Additionally, the plug is designed to prevent the ingress of dust and water, further enhancing safety and reducing the risk of electrical faults.
Industrial Plug is also built to withstand corrosion, thanks to its robust construction and corrosion-resistant materials. This resistance to corrosion ensures long-term reliability and minimizes the risk of electrical faults or degradation due to environmental factors.
Technical Parameter
|
Product name |
Industrial plug |
||
|
Current |
16A/32A |
||
|
Earth contact position |
Standard: 4h,6h 2h,3h,7h,9h,10h,*special earth contact position customize available |
||
|
Ltem code |
16A |
3 pin (2P+E) |
HF-013/HF-013-4 |
|
4 pin (3P+E) |
HF-014/HF-014-4 |
||
|
5 pin (3P+N+E) |
HF-015/HF-015-4 |
||
|
32A |
3 pin (2P+E) |
HF-023/HF-023-4 |
|
|
4 pin (3P+E) |
HF-024/HF-024-4 |
||
|
5 pin (3P+N+E) |
HF-025/HF-025-4 |
||
|
Protection degree |
IP44 |
||
|
Voltage |
110-130V~,220-250V~,380-415~,415V~ |
||
|
Standard |
EN/ IEC 60309-1/2 |
||
|
Certification |
CE, ROHS, TUV, CB |
||
Dimensions
|
Current |
16A |
32A |
||||
|
number of poles |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
3 pin (2P+E) |
4 pin (3P+E) |
5 pin (3P+N+E) |
|
a |
122 |
122 |
130 |
139 |
139 |
143 |
|
b |
59 |
65 |
72 |
75 |
75 |
84 |
|
c |
51 |
55 |
64 |
64 |
64 |
70 |
|
φ |
6 |
6 |
8 |
8 |
8 |
8 |
|
Cable cross-section are(m m²) |
1~2.5 |
2.5~6 |
||||
※ Customization is available for special voltages, grounding locations, colors, etc.
